You are given a deck expansion detail, but the client requested to have everything connected by Simpson product. Redraw

Post by answerhappygod »

You Are Given A Deck Expansion Detail But The Client Requested To Have Everything Connected By Simpson Product Redraw 1
You Are Given A Deck Expansion Detail But The Client Requested To Have Everything Connected By Simpson Product Redraw 1 (65.07 KiB) Viewed 32 times

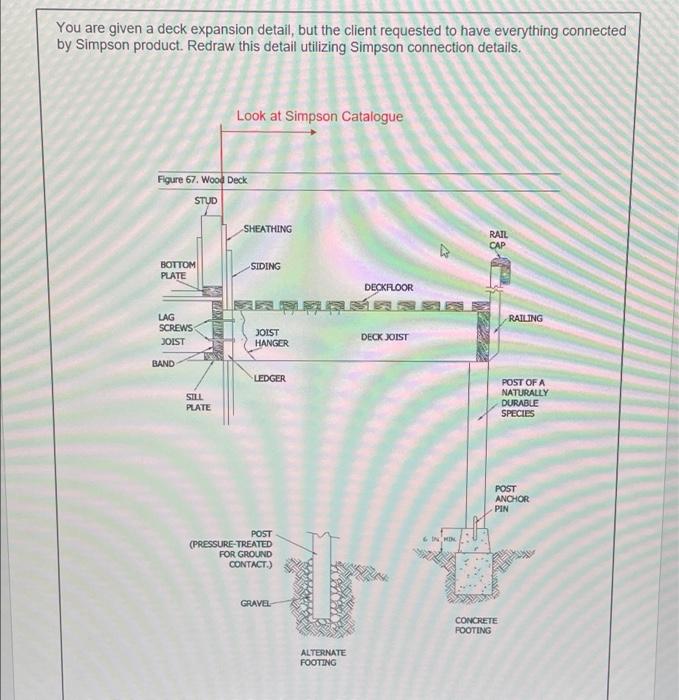

You are given a deck expansion detail, but the client requested to have everything connected by Simpson product. Redraw this detail utilizing Simpson connection details. Look at Simpson Catalogue Figure 67. Wood Deck STUD SHEATHING RAIL CAP BOTTOM PLATE SIDING DECKPLOOR RAILING LAG SCREWS JOIST JOIST HANGER DECK JOIST BAND LEDGER SILL PLATE POST OF A NATURALLY DURABLE SPECIES POST ANCHOR PIN IN HEN POST (PRESSURE-TREATED FOR GROUND CONTACT.) GRAVE CONCRETE POOTING ALTERNATE FOOTING
