Question 1 (20 marks) Design an adequate lapped splice connection for the tension member shown. The steel is Grade 250 a

Post by answerhappygod »

Question 1 20 Marks Design An Adequate Lapped Splice Connection For The Tension Member Shown The Steel Is Grade 250 A 1
Question 1 20 Marks Design An Adequate Lapped Splice Connection For The Tension Member Shown The Steel Is Grade 250 A 1 (33.04 KiB) Viewed 38 times

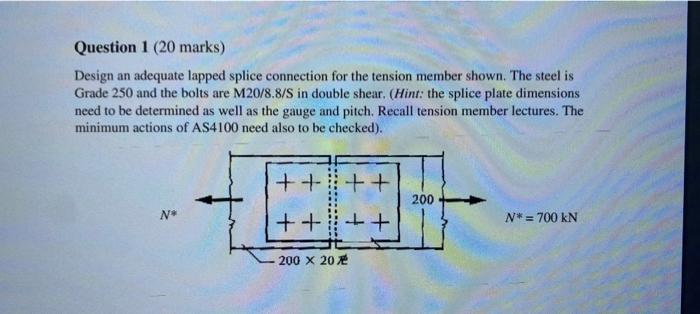

Question 1 (20 marks) Design an adequate lapped splice connection for the tension member shown. The steel is Grade 250 and the bolts are M20/8.8/S in double shear. (Hint: the splice plate dimensions need to be determined as well as the gauge and pitch. Recall tension member lectures. The minimum actions of AS4100 need also to be checked). tttt 200 N. N*= 700 KN = ++++ 200 x 20
