Situation The Aluminum Bar Shown Has A Uniform Cross Sectional Area Of 350 Mm2 Modulus Of Elasticity Of Aluminum Is 69 1 (17.9 KiB) Viewed 38 times
A.) Which of the following gives the reaction at the fixed end?
B.) Which of the following gives the deformation of the 1.2 m long segment?
C.) Which of the following gives the total deformation?
Please show complete solution
NEED THIS ASAP

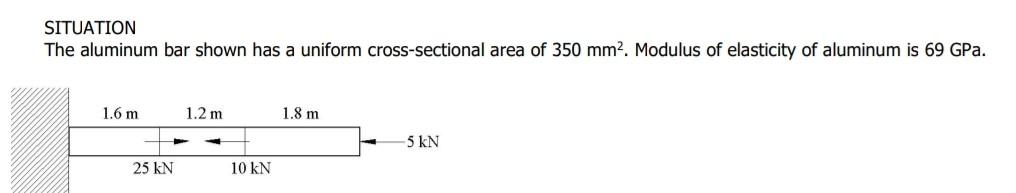

SITUATION The aluminum bar shown has a uniform cross-sectional area of 350 mm2. Modulus of elasticity of aluminum is 69 GPa. 1.6 m 1.2 m 1.8 m 5 kN 25 kN 10 KN
