1).The 1-in.-diameter rod is subjected to the loads shown.
Determine the normal stress (psi) at point B
2).The 1-in.-diameter rod is subjected to the loads shown.
Determine the shear stress (psi) at point B
PLEASE ANSWER ALL QUESTIONS CORRECTLY. TAKE TIME TO MAKE
SURE ANSWERS ARE CORRECT
1 The 1 In Diameter Rod Is Subjected To The Loads Shown Determine The Normal Stress Psi At Point B 2 The 1 In Dia 1 (40.1 KiB) Viewed 35 times
1 The 1 In Diameter Rod Is Subjected To The Loads Shown Determine The Normal Stress Psi At Point B 2 The 1 In Dia 2 (32.77 KiB) Viewed 35 times

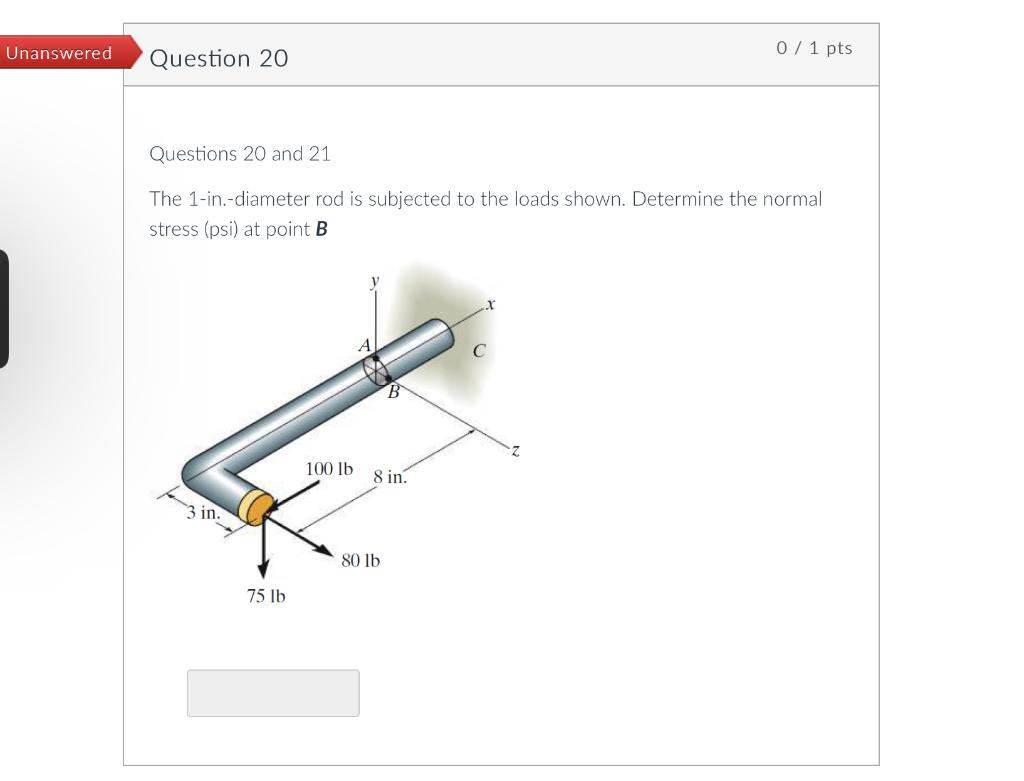

Unanswered 0 / 1 pts Question 20 Questions 20 and 21 The 1-in.-diameter rod is subjected to the loads shown. Determine the normal stress (psi) at point B 100 lb 8 in. 3 in. 80 lb 75 lb

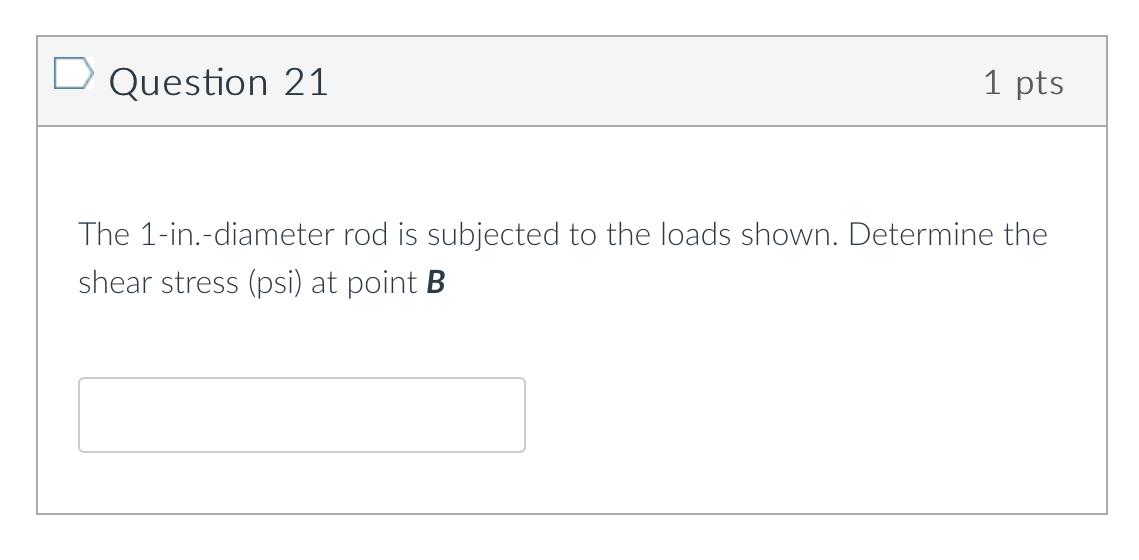

Question 21 1 pts The 1-in.-diameter rod is subjected to the loads shown. Determine the shear stress (psi) at point B
