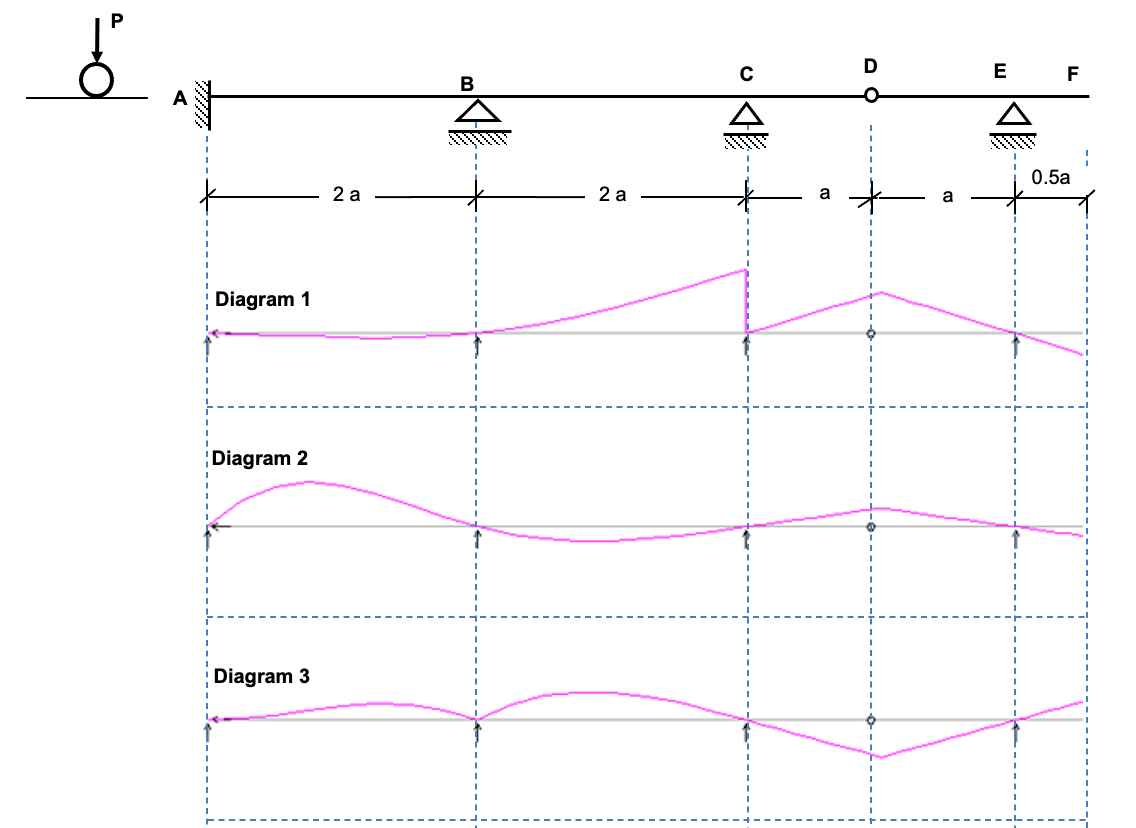

The influence line diagrams on for a number of internal actions
of the beam are shown (The beam is made out of a steel 610UB101
section and has A as a fixed support and roller supports at Point
B, C and E as shown. Members CD and DE are pin connected at D.
1. What is the Maximum bending moment at A?
The Influence Line Diagrams On For A Number Of Internal Actions Of The Beam Are Shown The Beam Is Made Out Of A Steel 6 1 (58.05 KiB) Viewed 36 times
Ć D с E F A 22444 D 0.5a 2 a 2 a a Diagram 1 Diagram 2 Diagram 3
Diagram 4 Diagram 5 ! Diagram 6 1 1 Diagram 7 Diagram 8
