determine the reaction at supports, internal normal force (N), shear force (V) and bending moment (M) in the beam shown

Post by answerhappygod »

determine the reaction at supports, internal normal force (N), shear force (V) and bending moment (M) in the beam shown below.
XX = 22
X = 2
draw SFD & BMD
Determine The Reaction At Supports Internal Normal Force N Shear Force V And Bending Moment M In The Beam Shown 1
Determine The Reaction At Supports Internal Normal Force N Shear Force V And Bending Moment M In The Beam Shown 1 (203.06 KiB) Viewed 39 times

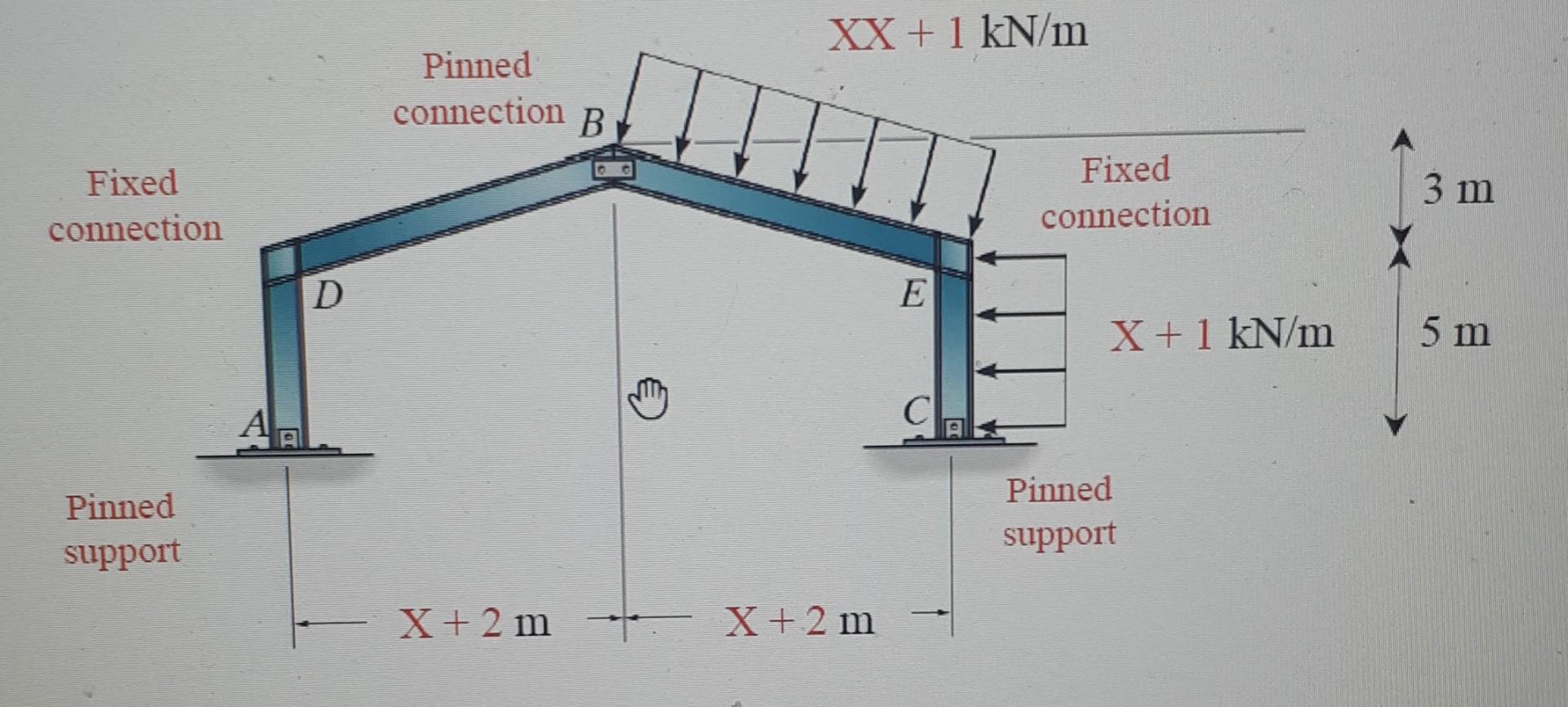

XX + 1 kN/m Pinned connection B Fixed connection Fixed connection 3 m D E X + 1 kN/m 5 m А Pinned support Pinned support X + 2 m + X + 2 m +
