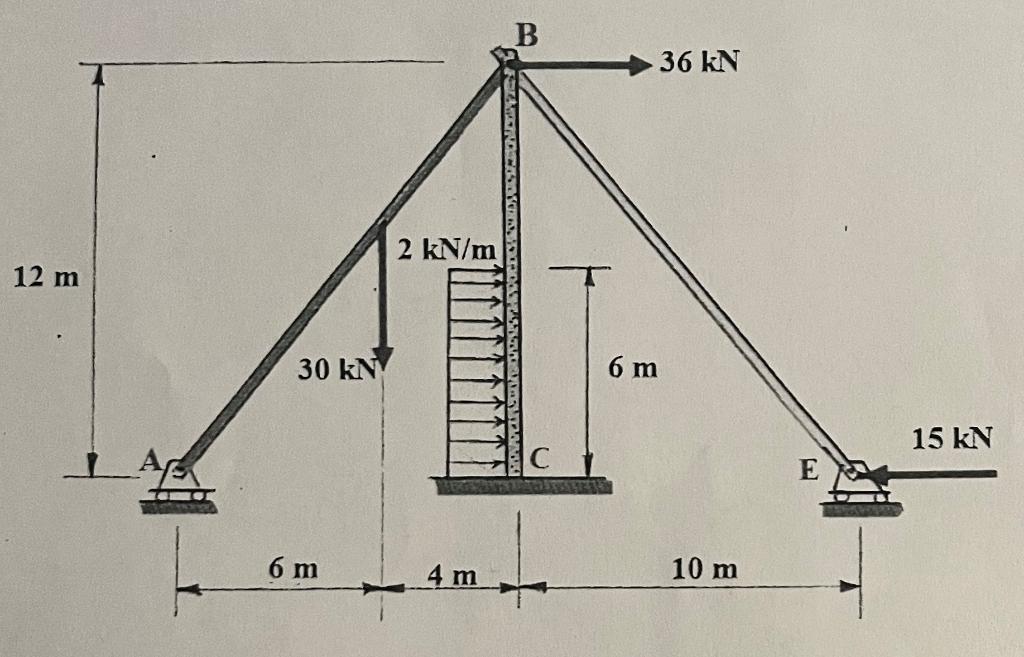

Calculate the five reactions of the three supports of the
following structure formed by three bars joined by a pin at point
B. Indicate the units, directions and senses of the support
reactions.
Calculate The Five Reactions Of The Three Supports Of The Following Structure Formed By Three Bars Joined By A Pin At Po 1 (81.91 KiB) Viewed 26 times
Note: Its inconvenient to separate the bars to calculate
the reactions, because three bars arrive at point B and this
procedure becomes complicated. Use the three equilibrium equations
for the entire structure and two additional moment sum equations
about the point where the bars meet.
B 36 kN 2 kN/m 12 m 30 KN 6 m 15 kN IA E 6 m 4 m 10 m
