Locate the centroid y¯ of the composite area. Set a = 170 mm , b
= 450 mm , d = 50 mm , h = 220 mm .

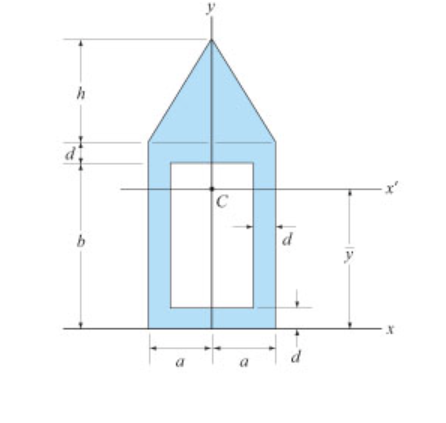

(Figure 1)
Express your answer with the appropriate units.
y¯ =
Determine the moment of inertia of this area about the x′
axis.
Express your answer with the appropriate units.
Ix′=
nothing
Locate The Centroid Y Of The Composite Area Set A 170 Mm B 450 Mm D 50 Mm H 220 Mm Figure 1 Express 1 (42.35 KiB) Viewed 18 times
h al с b d d a
