4000 ih A 25--long soldier beam is used as a key component of an earth retention system at an excavation site. The soldi

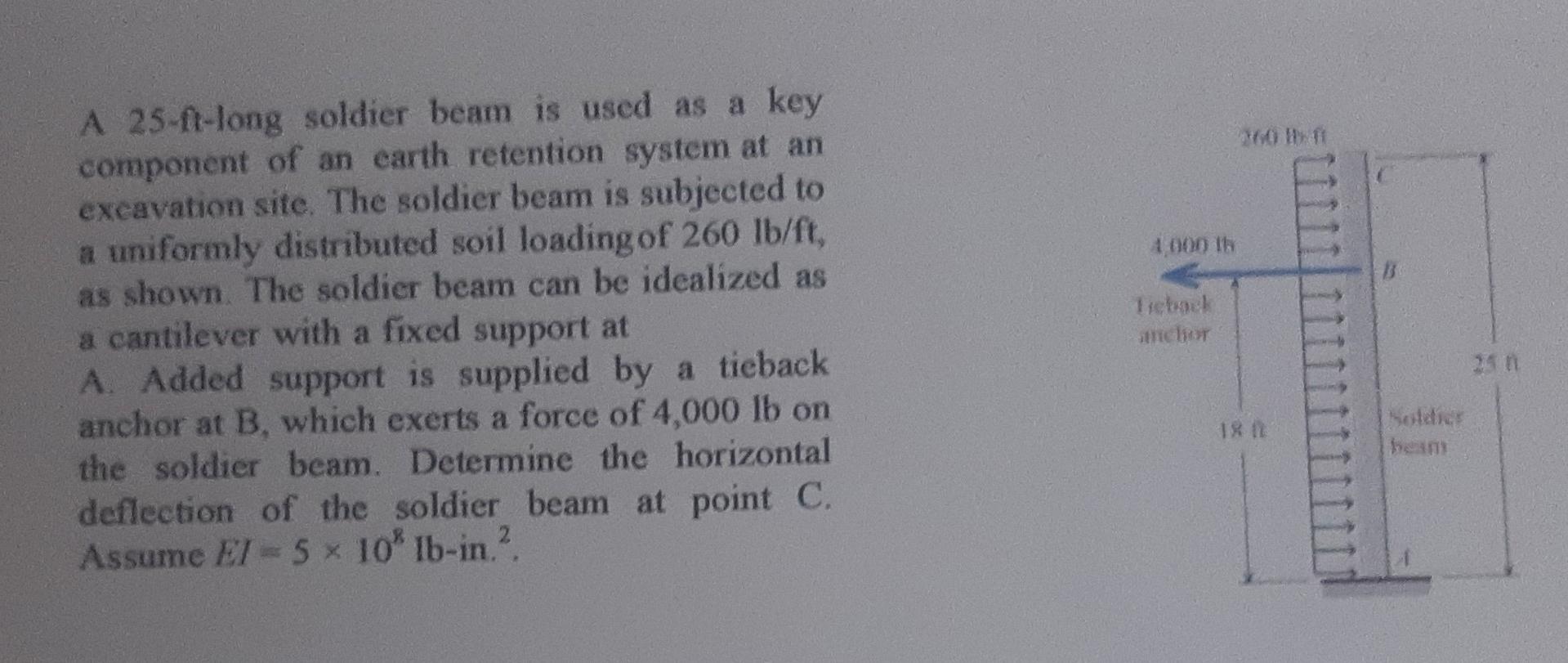

4000 ih A 25--long soldier beam is used as a key component of an earth retention system at an excavation site. The soldier beam is subjected to a uniformly distributed soil loading of 260 lb/ft, as shown. The soldier beam can be idealized as a cantilever with a fixed support at A Added support is supplied by a tieback anchor at B, which exerts a force of 4,000 lb on the soldier beam. Determine the horizontal deflection of the soldier beam at point C. Assume EI = 5 x 10 lb-in? Tichock anchor 1812
