In a place, before the construction, CPT test was applied, the
sand CPT Data is presented in Table 1. Ground water level of the
region is at the 1-meter depth. You may Take 𝛾=18 𝑘𝑁/𝑚3 𝛾𝑠𝑎𝑡=20
𝑘𝑁/𝑚3 𝛾𝑤𝑎𝑡𝑒𝑟 =10 𝑘𝑁/𝑚3

In A Place Before The Construction Cpt Test Was Applied The Sand Cpt Data Is Presented In Table 1 Ground Water Level 1 (23.12 KiB) Viewed 26 times

𝑞𝑛𝑒𝑡̅̅̅̅̅=160𝑘𝑁/𝑚2 , calculate the settlement of the square
foundation with B=3m (and L=3m) and Df=1m, using the Schmertmann
method in t = 4 years.
E = 2.5* qc

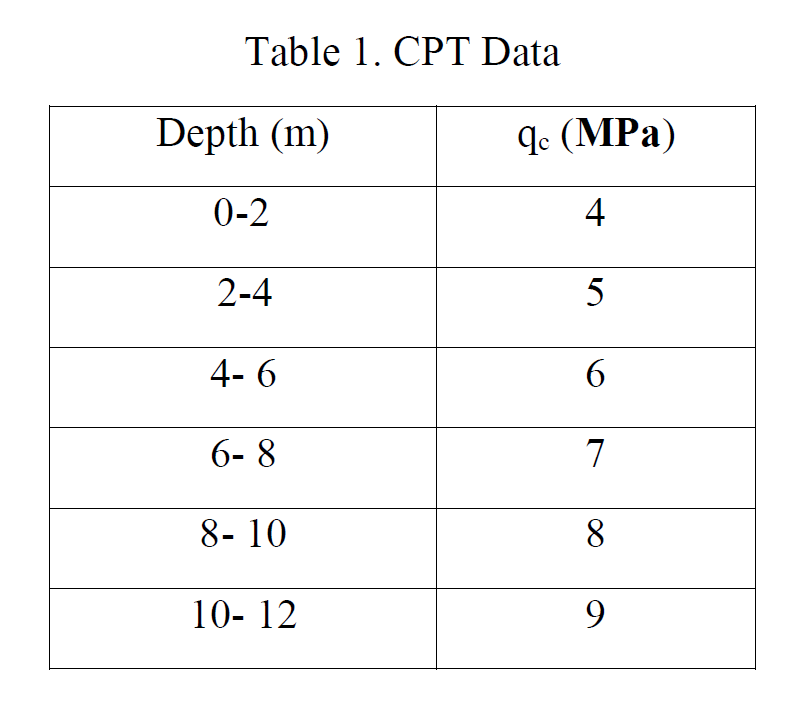

Table 1. CPT Data Depth (m) 4c (MPa) 0-2 4. 2-4 5 4-6 6 6- 8 7 8-10 8 10- 12 9
