Please Solve for Reactions, Provide Shear and Moment diagrams, and indicate Max Shear and Max Bending Moment. Use ASD De

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Please Solve for Reactions, Provide Shear and Moment diagrams, and indicate Max Shear and Max Bending Moment. Use ASD De

Post by answerhappygod »

Please Solve For Reactions Provide Shear And Moment Diagrams And Indicate Max Shear And Max Bending Moment Use Asd De 1
Please Solve For Reactions Provide Shear And Moment Diagrams And Indicate Max Shear And Max Bending Moment Use Asd De 1 (45.1 KiB) Viewed 31 times

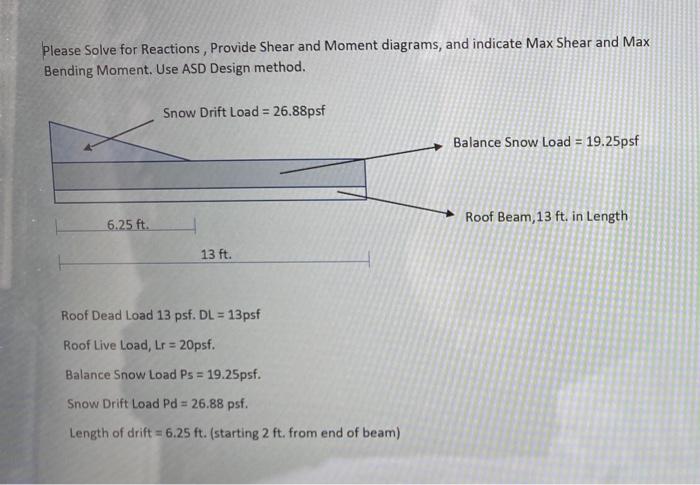

Please Solve for Reactions, Provide Shear and Moment diagrams, and indicate Max Shear and Max Bending Moment. Use ASD Design method. Snow Drift Load = 26.88psf Balance Snow Load = 19.25psf 6.25 ft. Roof Beam, 13 ft. in Length 13 ft. Roof Dead Load 13 psf. DL= 13psf Roof Live Load, Lr = 20psf. Balance Snow Load Ps = 19.25psf. Snow Drift Load Pd = 26.88 psf. Length of drift = 6.25 ft. (starting 2 ft from end of beam)
