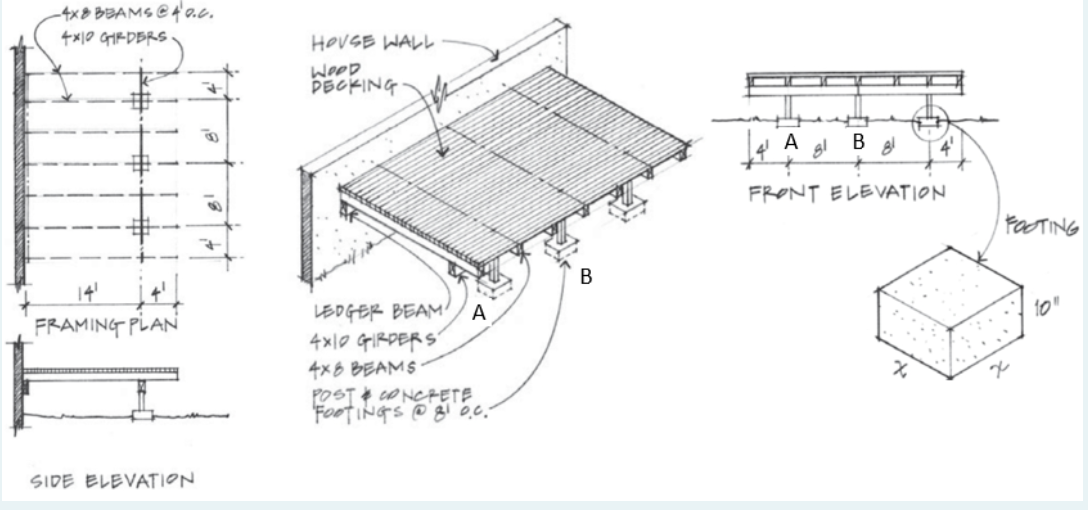

The load trace will involve the framing for a small deck
addition to a residence.
Please round to the nearest one-tenth (i.e.,
0.1).
Determine the reaction force for a typical interior beam
(ledger beam side) = Answer lb
Determine the reaction force for a typical interior beam
(girder side) = Answer lb
Determine the reaction force for a typical exterior beam
(ledger beam side) = Answer lb
Determine the reaction force for a typical exterior beam
(girder side) = Answer lb
Determine the load on Post A = Answer lb
Determine the load on Post B = Answer lb
Determine the minimum theoretical width (x) of
the critical pier footing (account for the weight of the concrete)
= Answer ft
