a) A test well was screened through the full thickness of a 65 ft water bearing soil stratum. The well was pumped for 5

[answerhappygod]

A A Test Well Was Screened Through The Full Thickness Of A 65 Ft Water Bearing Soil Stratum The Well Was Pumped For 5 1 (23.42 KiB) Viewed 31 times

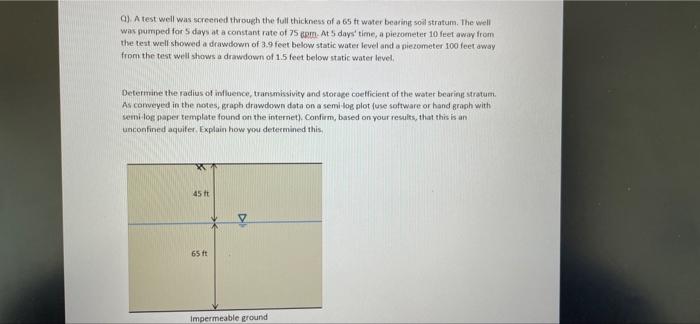

a) A test well was screened through the full thickness of a 65 ft water bearing soil stratum. The well was pumped for 5 days at a constant rate of 75 sem. At 5 days' time, a piezometer 10 feet away from the test well showed a drawdown of 3.9 feet below static water level and a piezometer 100 feet away from the test well shows a drawdown of 15 feet below static water level Determine the radius of influence, transmissivity and storage coefficient of the water bearing stratum, As conveyed in the notes, graph drawdown data on a semilog plot fuse software or hand graph with semi og paper template found on the internet). Confirm, based on your results, that this is an unconfined aquiter Explain how you determined this, 451 651 Impermeable ground
