Q1(7P). The Mohr's circle for a stress state is presented below. Determine: a- the values of ox Oyy and Try for this str

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q1(7P). The Mohr's circle for a stress state is presented below. Determine: a- the values of ox Oyy and Try for this str

Post by answerhappygod »

Q1 7p The Mohr S Circle For A Stress State Is Presented Below Determine A The Values Of Ox Oyy And Try For This Str 1
Q1 7p The Mohr S Circle For A Stress State Is Presented Below Determine A The Values Of Ox Oyy And Try For This Str 1 (698.59 KiB) Viewed 38 times

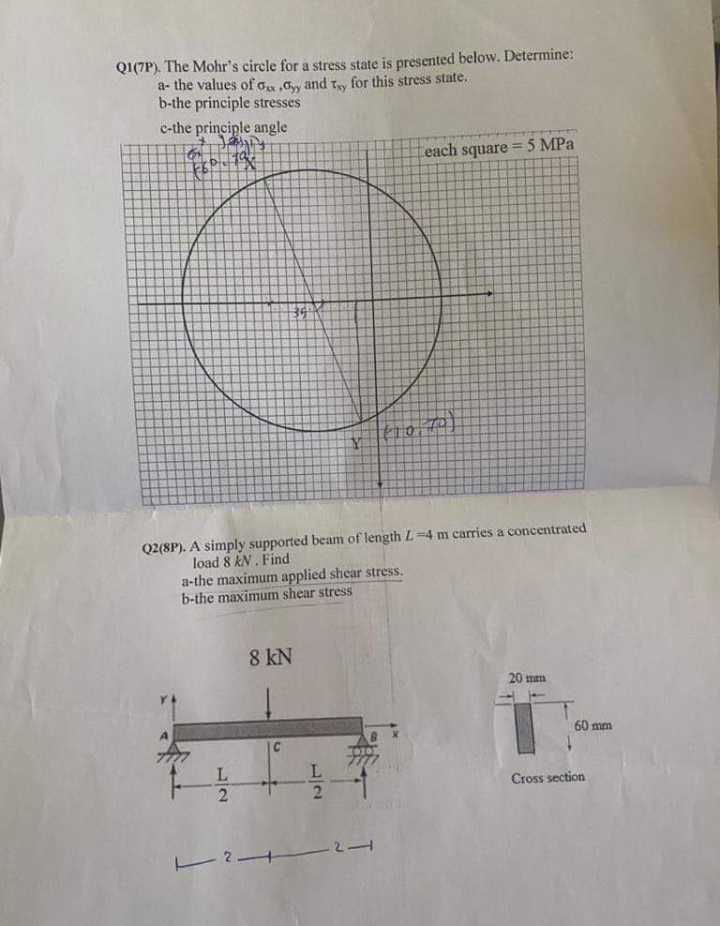

Q1(7P). The Mohr's circle for a stress state is presented below. Determine: a- the values of ox Oyy and Try for this stress state. b-the principle stresses e-the principle angle each square = 5 MPa FA 34 Q2(8P). A simply supported beam of length L =4 m carries a concentrated load 8 kN. Find a-the maximum applied shear stress. b-the maximum shear stress 8 KN 20 min 60 mm C L L 2 Cross section - 2 - 24
