Hibbeler 7 46 Modified The Built Up Timber Beam Is Made From The Four Rectangular Boards Having Dimensions B1 300 Mm 1 (49.63 KiB) Viewed 34 times

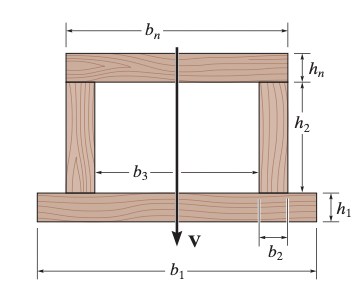

Hibbeler 7–46 (modified). The
built-up timber beam is made from the four rectangular boards
having dimensions b1= 300 mm, h1= 20 mm,
b2= 20 mm, h2= 160 mm, bn= 200 mm,
hn= 20 mm, that rae glued as shown in the figure.
Determine the maximum shear, V that can be applied to the beam
without causing
bn hn h2 b3 Thi b2 bi
