Problem 3 Part D Suppose That Q 15 Kn M L 3 M E 200 Gpa And I 119 X 105 Mm For The Beam Of Problem 3 On Weba 1 (37.55 KiB) Viewed 31 times
The Following equations can be used.
Problem 3 Part D Suppose That Q 15 Kn M L 3 M E 200 Gpa And I 119 X 105 Mm For The Beam Of Problem 3 On Weba 2 (7.29 KiB) Viewed 31 times

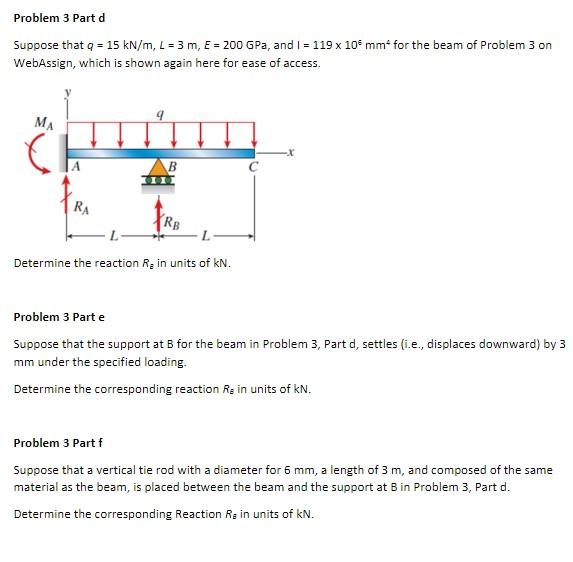

Problem 3 Part d Suppose that q = 15 kN/m, L = 3 m, E = 200 GPa, and I = 119 x 105 mm' for the beam of Problem 3 on WebAssign, which is shown again here for ease of access. MA АВ RA RB Determine the reaction Rain units of kN. Problem 3 Parte Suppose that the support at B for the beam in Problem 3, Part d, settles (i.e., displaces downward) by 3 mm under the specified loading. Determine the corresponding reaction Rs in units of kN. Problem 3 Partf Suppose that a vertical tie rod with a diameter for 6 mm, a length of 3 m, and composed of the same material as the beam, is placed between the beam and the support at B in Problem 3, Part d. Determine the corresponding Reaction Rain units of kN.
RA L 8 = -9 A RB L 179: 8 = 100 MA II -9 L 8
