1. Determine the moments at A, B, C, and D, then draw the moment diagram for the beam shown in Fig. 1. Assume the suppor

Post by answerhappygod »

1 Determine The Moments At A B C And D Then Draw The Moment Diagram For The Beam Shown In Fig 1 Assume The Suppor 1
1 Determine The Moments At A B C And D Then Draw The Moment Diagram For The Beam Shown In Fig 1 Assume The Suppor 1 (22.67 KiB) Viewed 34 times

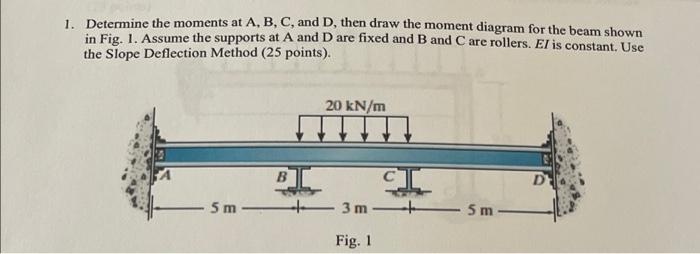

1. Determine the moments at A, B, C, and D, then draw the moment diagram for the beam shown in Fig. 1. Assume the supports at A and D are fixed and B and C are rollers. El is constant. Use the Slope Deflection Method (25 points). 20 kN/m D 5 m 3 m 5 m Fig. 1
