Given the truss subjected to the inclined loads as shown, 8.5 kN 17 kN 17 kN K 8.5 kN 2.7 he Н. 0 D E 1.8 1.8 1.8. 1.8 1

Post by answerhappygod »

1
1 (48.04 KiB) Viewed 43 times

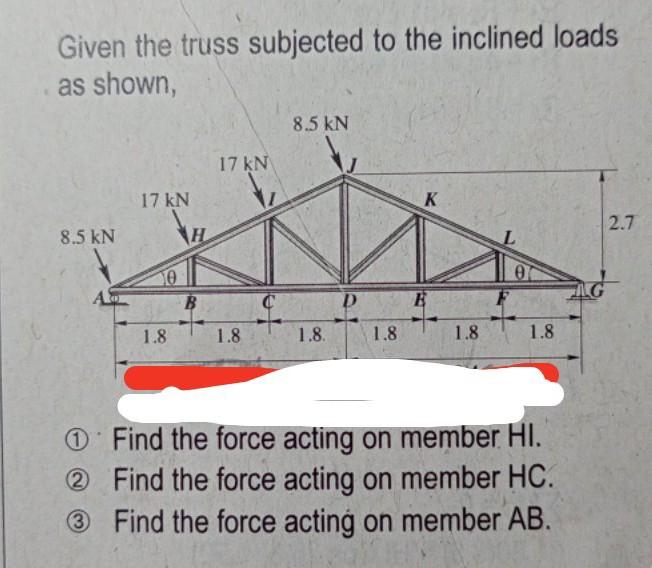

Given the truss subjected to the inclined loads as shown, 8.5 kN 17 kN 17 kN K 8.5 kN 2.7 he Н. 0 D E 1.8 1.8 1.8. 1.8 1.8 1.8 Find the force acting on member HI. 2 Find the force acting on member HC. 3 Find the force acting on member AB.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
