QUESTION 8 A three-hinged arch shown in Figure Q3 is part of a parabolic arch. The arch is pin supported at A and E and

Post by answerhappygod »

Question 8 A Three Hinged Arch Shown In Figure Q3 Is Part Of A Parabolic Arch The Arch Is Pin Supported At A And E And 1
Question 8 A Three Hinged Arch Shown In Figure Q3 Is Part Of A Parabolic Arch The Arch Is Pin Supported At A And E And 1 (21.42 KiB) Viewed 41 times

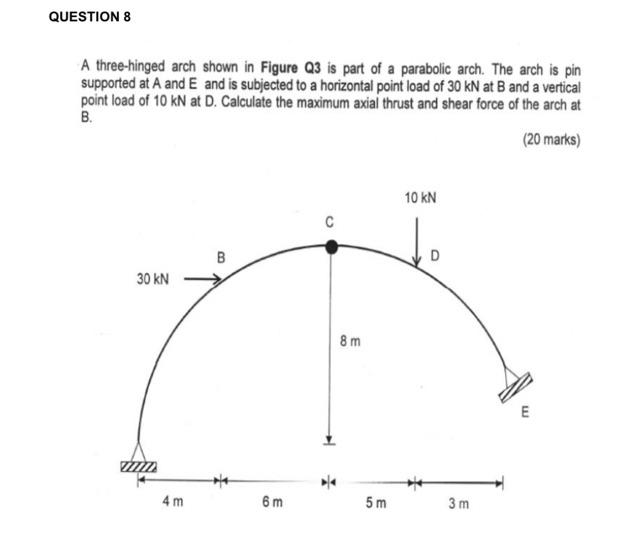

QUESTION 8 A three-hinged arch shown in Figure Q3 is part of a parabolic arch. The arch is pin supported at A and E and is subjected to a horizontal point load of 30 kN at B and a vertical point load of 10 kN at D. Calculate the maximum axial thrust and shear force of the arch at B. (20 marks) 10 KN B D 30 KN 8 m m E WI 1 곳 4 m 6 m 5 m 3 m m
