Q1. Two Brass strips are securely bonded to an aluminium bar of 30x30-mm square section. Aluminium has modulus of elasti

[answerhappygod]

Q1 Two Brass Strips Are Securely Bonded To An Aluminium Bar Of 30x30 Mm Square Section Aluminium Has Modulus Of Elasti 1 (40.29 KiB) Viewed 59 times

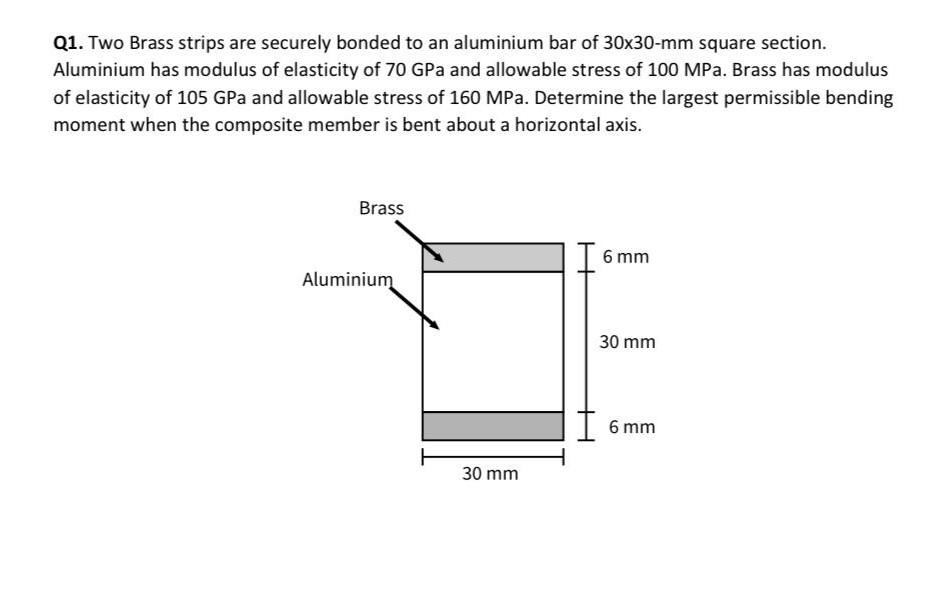

Q1. Two Brass strips are securely bonded to an aluminium bar of 30x30-mm square section. Aluminium has modulus of elasticity of 70 GPa and allowable stress of 100 MPa. Brass has modulus of elasticity of 105 GPa and allowable stress of 160 MPa. Determine the largest permissible bending moment when the composite member is bent about a horizontal axis. Brass 6 mm Aluminium 30 mm f 6mm 30 mm
