Make this structure determinate.
Analyze and determine all force members.
Use the method of virtual work to calculate deflection
at the point of maximum deflection.
You can cut it into sections if necessary(Remove top
half)
Make This Structure Determinate Analyze And Determine All Force Members Use The Method Of Virtual Work To Calculate De 1 (18.78 KiB) Viewed 36 times

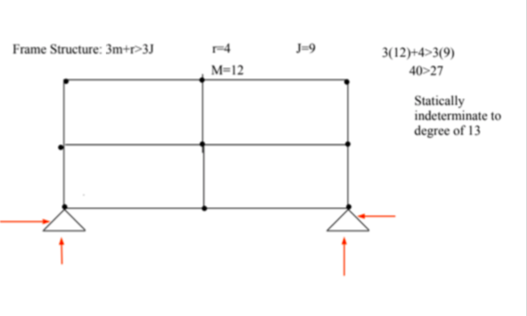

Frame Structure: 3m+r3) 4 J-9 M-12 3(12)+4>39) 40>27 Statically indeterminate to degree of 13
