Note: You must solve the following question using the Mohr's Circle Method. A material is in biaxial stress, as shown in

[answerhappygod]

Note You Must Solve The Following Question Using The Mohr S Circle Method A Material Is In Biaxial Stress As Shown In 1 (118.82 KiB) Viewed 68 times

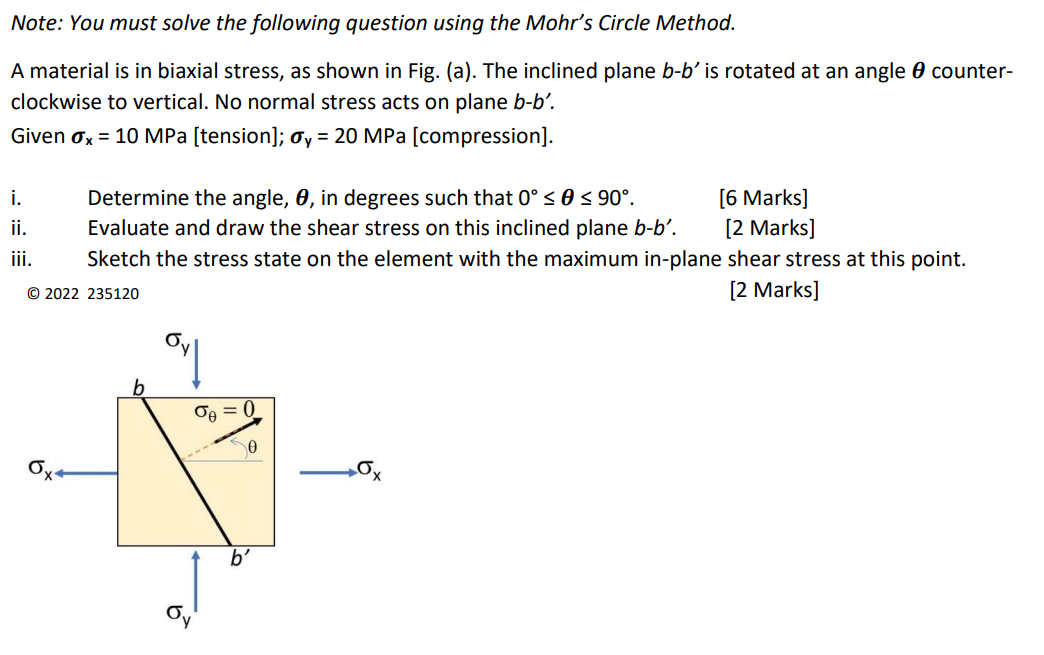

Note: You must solve the following question using the Mohr's Circle Method. A material is in biaxial stress, as shown in Fig. (a). The inclined plane b-b’is rotated at an angle 0 counter- clockwise to vertical. No normal stress acts on plane b-b'. Given 0x = 10 MPa (tension]; Oy = 20 MPa (compression). i. Determine the angle, 0, in degrees such that 0º = 0 < 90°. [6 Marks] ji. Evaluate and draw the shear stress on this inclined plane b-b'. [2 marks] iii. Sketch the stress state on the element with the maximum in-plane shear stress at this point. © 2022 235120 (2 Marks] Co = 0 e b
