Q3) Determine the maximum allowable magnitude of the force V if the shear force capacity of each bolt is 25 kN. Spacing

Post by answerhappygod »

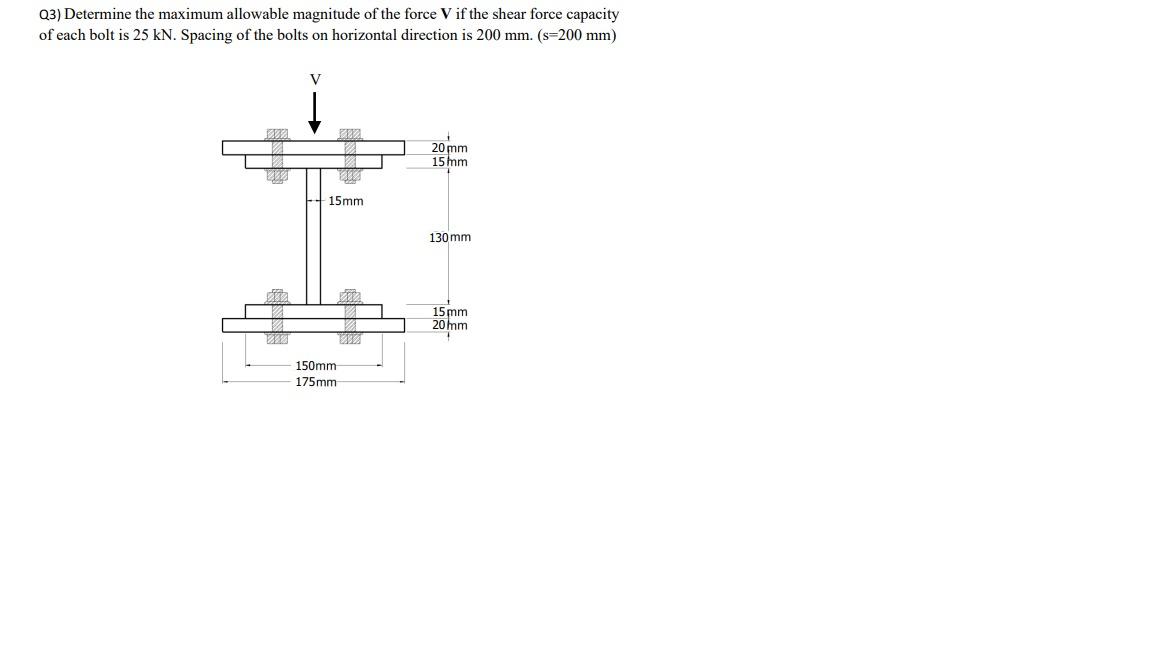

Q3 Determine The Maximum Allowable Magnitude Of The Force V If The Shear Force Capacity Of Each Bolt Is 25 Kn Spacing 1
Q3 Determine The Maximum Allowable Magnitude Of The Force V If The Shear Force Capacity Of Each Bolt Is 25 Kn Spacing 1 (28.82 KiB) Viewed 40 times
Q3) Determine the maximum allowable magnitude of the force V if the shear force capacity of each bolt is 25 kN. Spacing of the bolts on horizontal direction is 200 mm. (s=200 mm) V WE 2 20 mm 15 mm 15mm 130 mm 15 mm 20 mm 150mm 175mm
