From the given beam loaded as shown, Let P = 4 kN, L = 1 m, a = 6 m. E = 200GPa, I = 2000 x 10^6mm^4 Note: kindly upload

Post by answerhappygod »

From The Given Beam Loaded As Shown Let P 4 Kn L 1 M A 6 M E 200gpa I 2000 X 10 6mm 4 Note Kindly Upload 1
From The Given Beam Loaded As Shown Let P 4 Kn L 1 M A 6 M E 200gpa I 2000 X 10 6mm 4 Note Kindly Upload 1 (55.8 KiB) Viewed 33 times

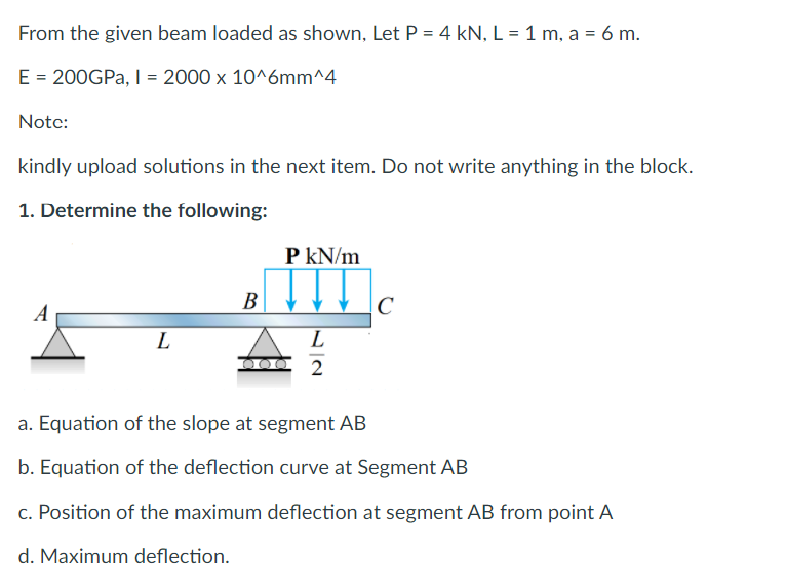

From the given beam loaded as shown, Let P = 4 kN, L = 1 m, a = 6 m. E = 200GPa, I = 2000 x 10^6mm^4 Note: kindly upload solutions in the next item. Do not write anything in the block. 1. Determine the following: PkN/m B А C L L 2 a. Equation of the slope at segment AB b. Equation of the deflection curve at Segment AB c. Position of the maximum deflection at segment AB from point A d. Maximum deflection.
