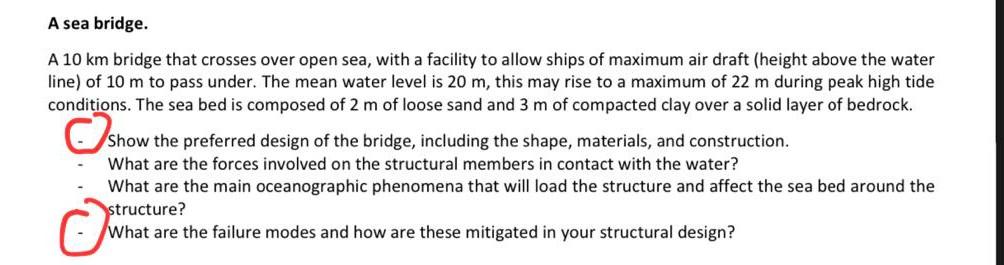

- A Sea Bridge A 10 Km Bridge That Crosses Over Open Sea With A Facility To Allow Ships Of Maximum Air Draft Height Abo 1 (45.74 KiB) Viewed 37 times
A sea bridge. A 10 km bridge that crosses over open sea, with a facility to allow ships of maximum air draft (height above the water line) of 10 m to pass under. The mean water level is 20 m, this may rise to a maximum of 22 m during peak high tide conditions. The sea bed is composed of 2 m of loose sand and 3 m of compacted clay over a solid layer of bedrock. Show the preferred design of the bridge, including the shape, materials, and construction. What are the forces involved on the structural members in contact with the water? What are the main oceanographic phenomena that will load the structure and affect the sea bed around the structure? What are the failure modes and how are these mitigated in your structural design? cs
