Port & a rool system 5 tusses Spaced @ 20 ft : Double angle Salons A572 Grade 50 steel Po= 40psf P. =80pos (incleschg wi

Post by answerhappygod »

Port A Rool System 5 Tusses Spaced 20 Ft Double Angle Salons A572 Grade 50 Steel Po 40psf P 80pos Incleschg Wi 1
Port A Rool System 5 Tusses Spaced 20 Ft Double Angle Salons A572 Grade 50 Steel Po 40psf P 80pos Incleschg Wi 1 (118.68 KiB) Viewed 45 times

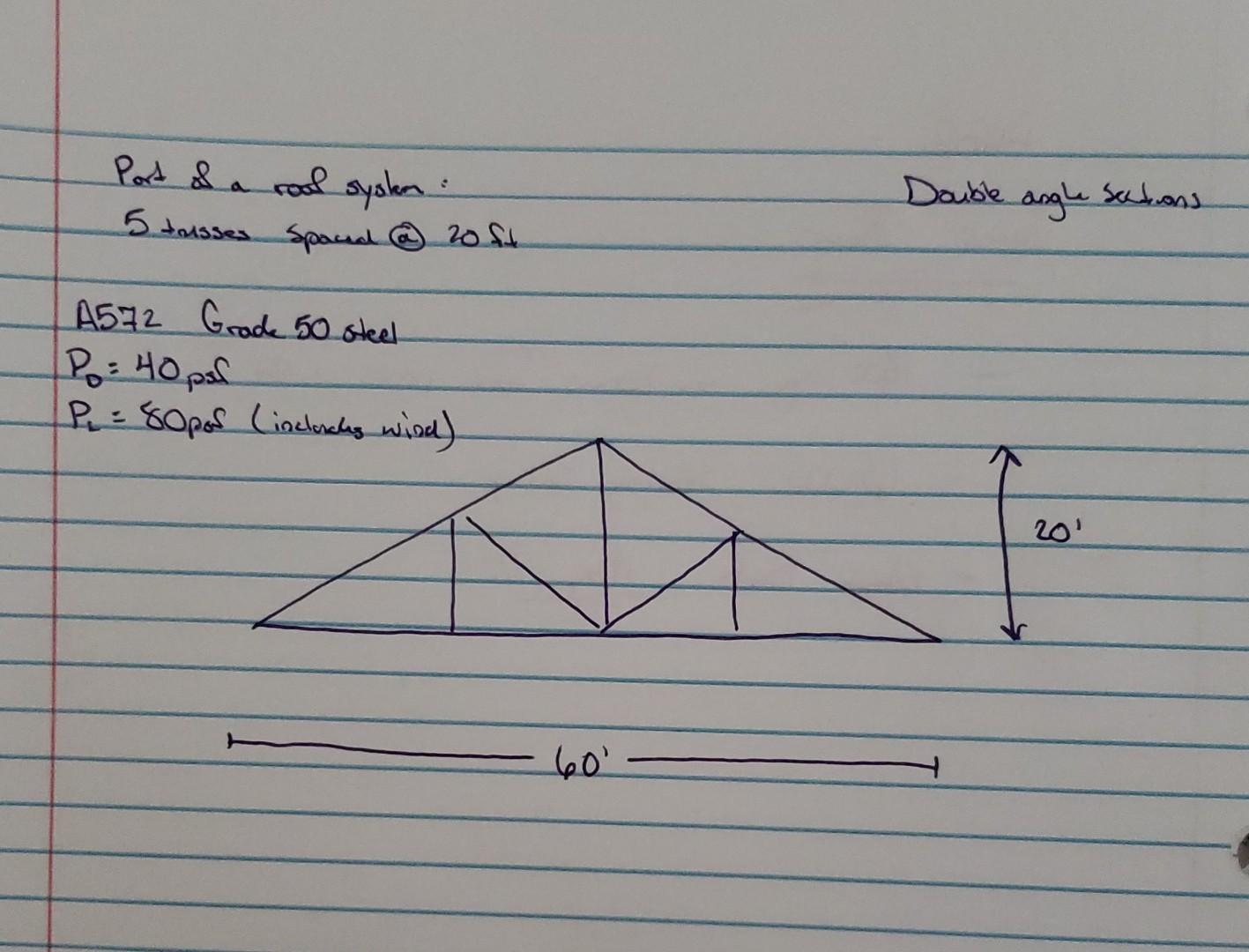

Please design this truss using double angle sections. Please design both Tension and Compression members
Truss is part of a roof system consisting of 5 trusses spaced at 20 ft. Total length is 60ft, total height is 20ft
Dead load: 40psf
Live load: 80psf
Port & a rool system 5 tusses Spaced @ 20 ft : Double angle Salons A572 Grade 50 steel Po= 40psf P. =80pos (incleschg wied) 20 60
