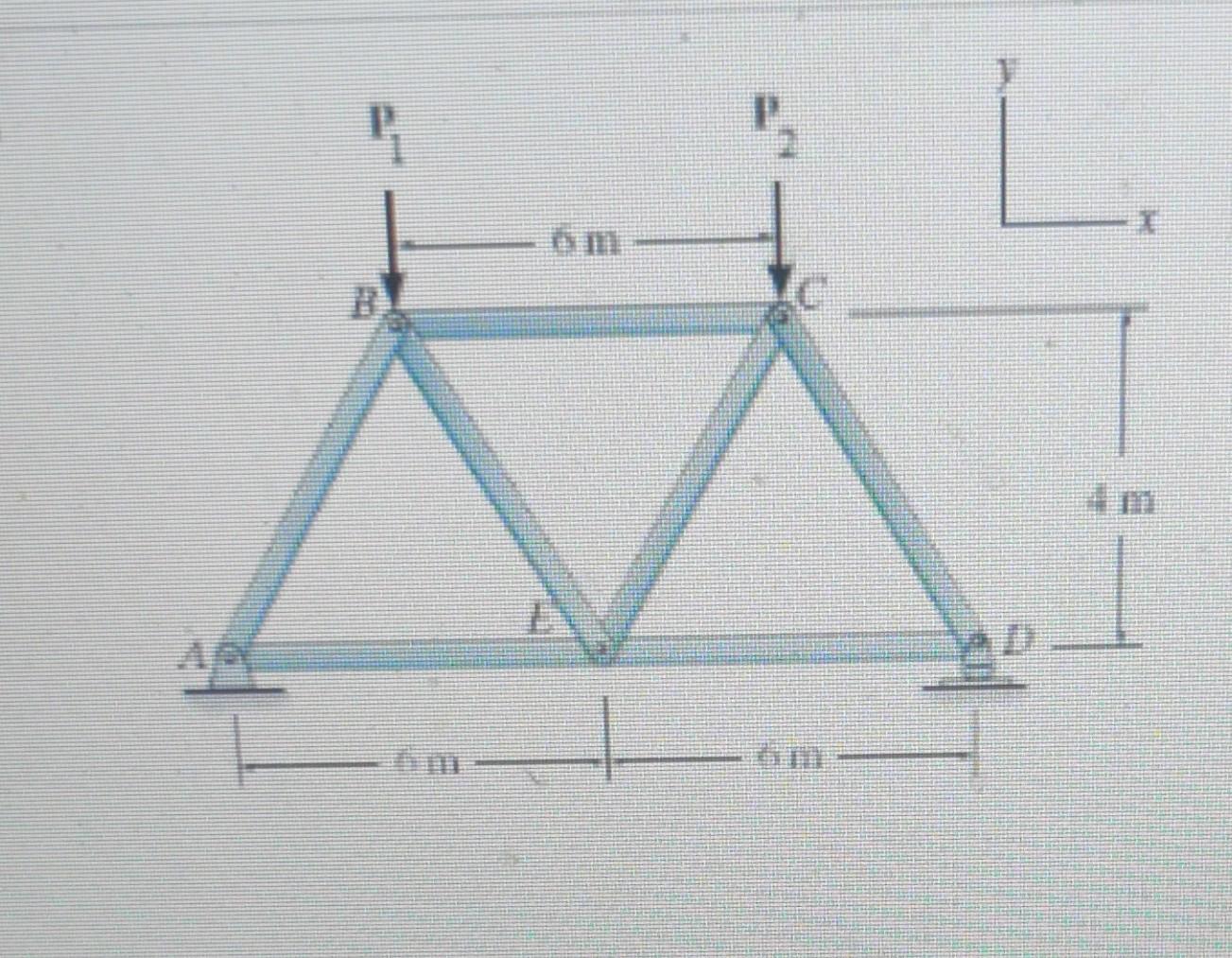

A Revie Consider the steel truss shown in Figure 1) to answer Parts A, B, and C below, where P1 = 32 kN and P2 = 58 kN

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

A Revie Consider the steel truss shown in Figure 1) to answer Parts A, B, and C below, where P1 = 32 kN and P2 = 58 kN

Post by answerhappygod »

A Revie Consider The Steel Truss Shown In Figure 1 To Answer Parts A B And C Below Where P1 32 Kn And P2 58 Kn 1
A Revie Consider The Steel Truss Shown In Figure 1 To Answer Parts A B And C Below Where P1 32 Kn And P2 58 Kn 1 (231.92 KiB) Viewed 34 times
A Revie Consider The Steel Truss Shown In Figure 1 To Answer Parts A B And C Below Where P1 32 Kn And P2 58 Kn 2
A Revie Consider The Steel Truss Shown In Figure 1 To Answer Parts A B And C Below Where P1 32 Kn And P2 58 Kn 2 (216.77 KiB) Viewed 34 times
A Revie Consider The Steel Truss Shown In Figure 1 To Answer Parts A B And C Below Where P1 32 Kn And P2 58 Kn 3
A Revie Consider The Steel Truss Shown In Figure 1 To Answer Parts A B And C Below Where P1 32 Kn And P2 58 Kn 3 (192.95 KiB) Viewed 34 times
A Revie Consider The Steel Truss Shown In Figure 1 To Answer Parts A B And C Below Where P1 32 Kn And P2 58 Kn 4
A Revie Consider The Steel Truss Shown In Figure 1 To Answer Parts A B And C Below Where P1 32 Kn And P2 58 Kn 4 (185.59 KiB) Viewed 34 times
A

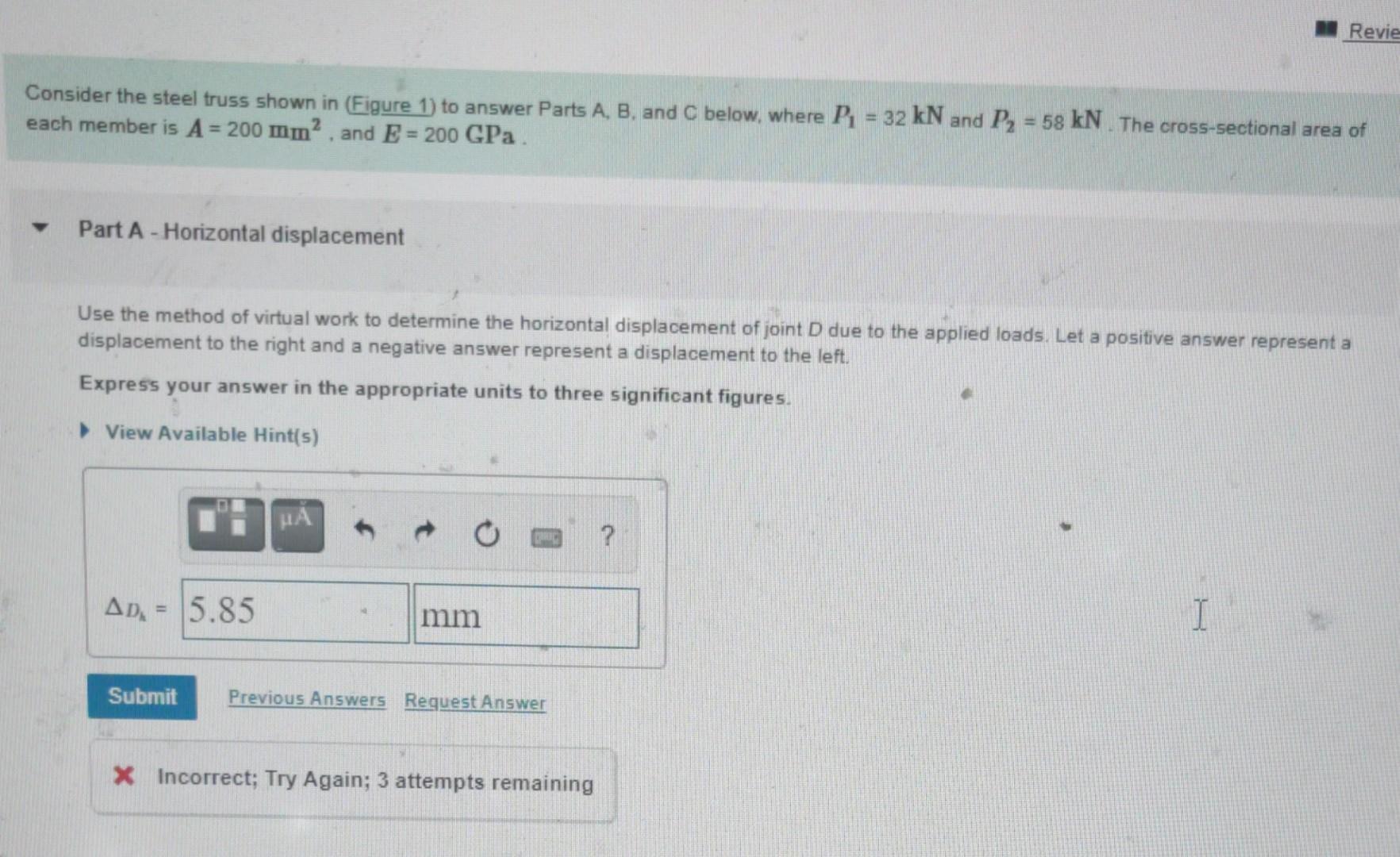

Revie Consider the steel truss shown in Figure 1) to answer Parts A, B, and C below, where P1 = 32 kN and P2 = 58 kN The cross-sectional area of each member is A = 200 mm. and E = 200 GP. Part A - Horizontal displacement Use the method of virtual work to determine the horizontal displacement of joint D due to the applied loads. Let a positive answer representa displacement to the right and a negative answer represent a displacement to the left. Express your answer in the appropriate units to three significant figures. View Available Hint(s) HA Δυ, = 5.85 mm I Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining

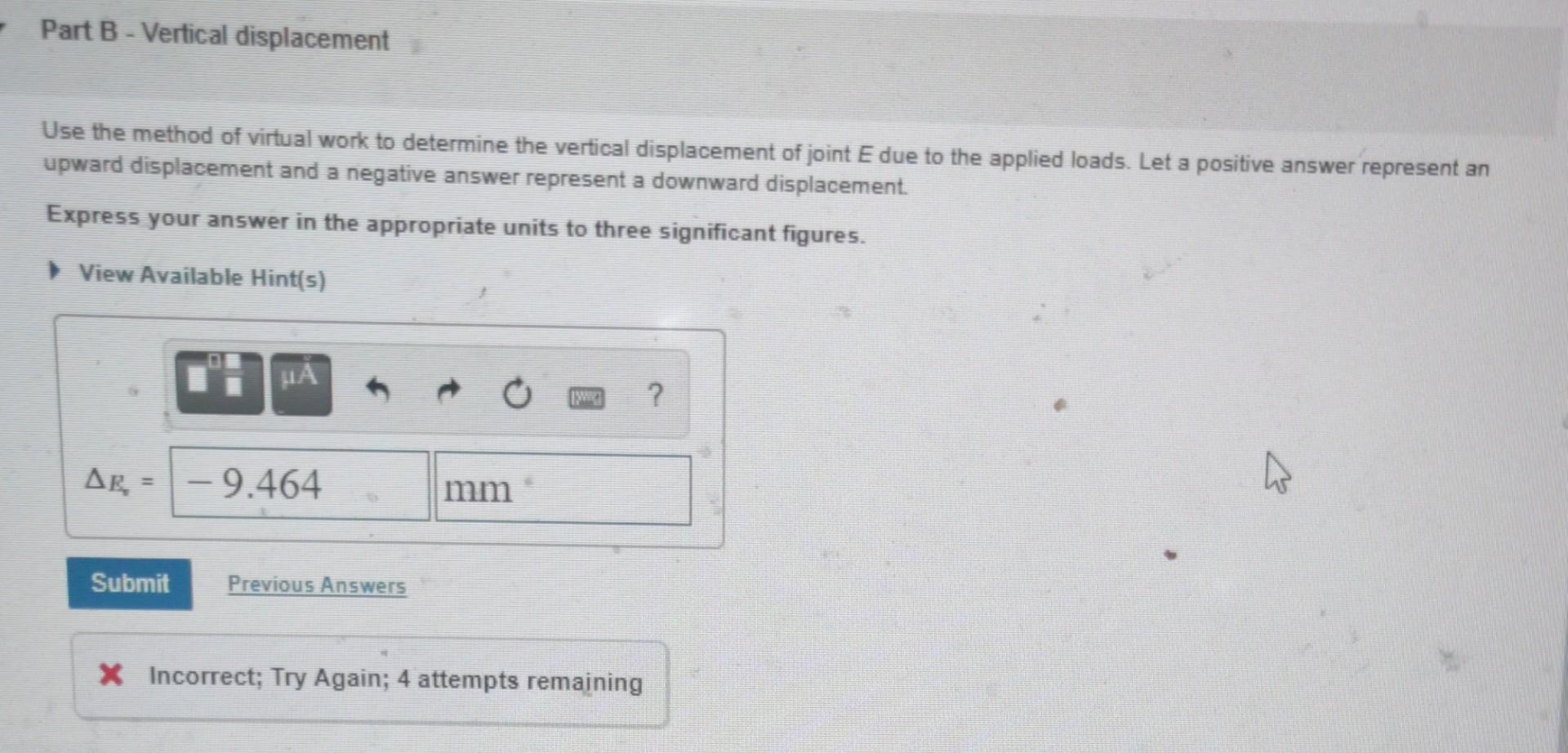

- Part B - Vertical displacement Use the method of virtual work to determine the vertical displacement of joint E due to the applied loads. Let a positive answer represent an upward displacement and a negative answer represent a downward displacement. Express your answer in the appropriate units to three significant figures. View Available Hint(s) НА ? ΔΕ, - 9.464 mm Submit Previous Answers X Incorrect; Try Again; 4 attempts remaining

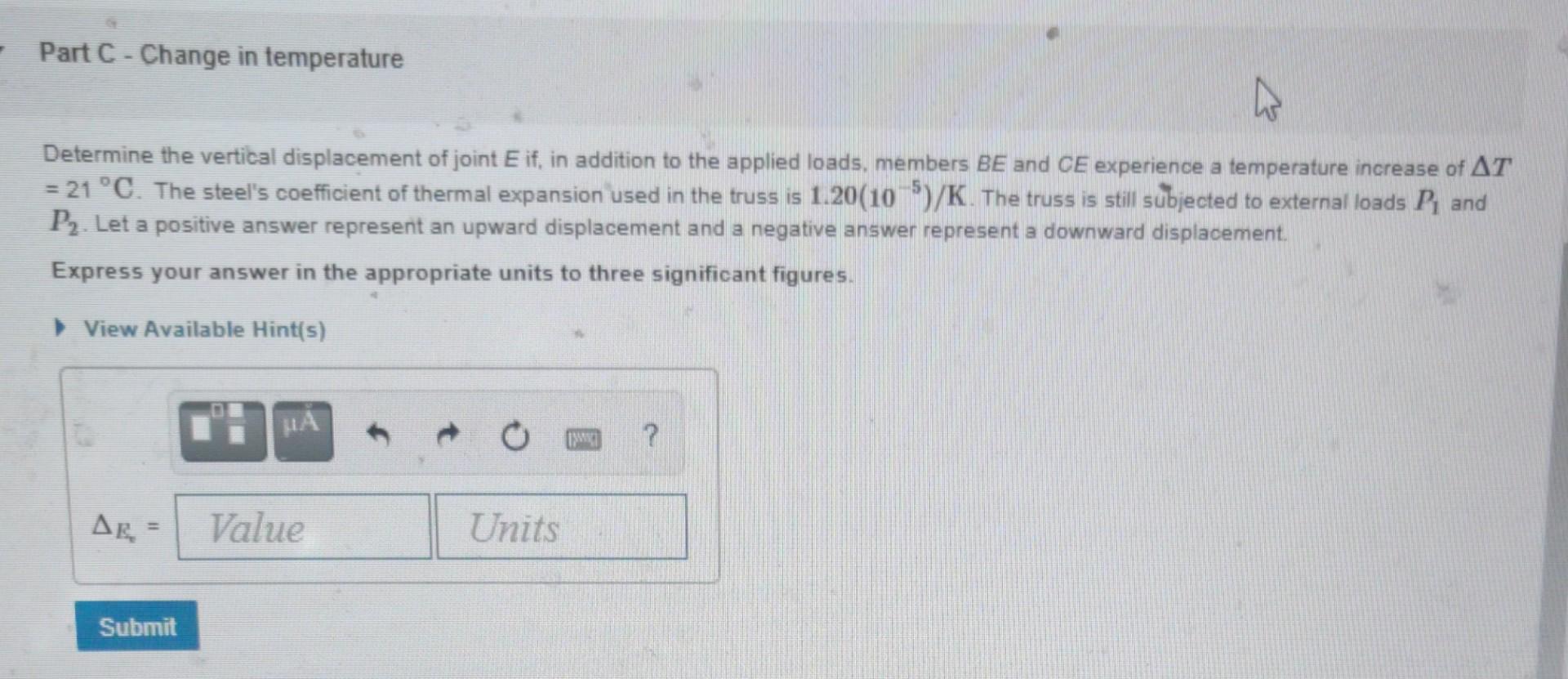

Part C - Change in temperature Determine the vertical displacement of joint E if, in addition to the applied loads, members BE and CE experience a temperature increase of AT = 21 °C. The steel's coefficient of thermal expansion used in the truss is 1.20(10 5)/K. The truss is still subjected to external loads P, and P2. Let a positive answer represent an upward displacement and a negative answer represent a downward displacement. Express your answer in the appropriate units to three significant figures. ► View Available Hint(s) MA ? ΔΕ. = Value Units Submit
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
