Problem 3: A hole is to be punched out in a plate that has a shear strength of 40 ksi. The working compressive stress of

Post by answerhappygod »

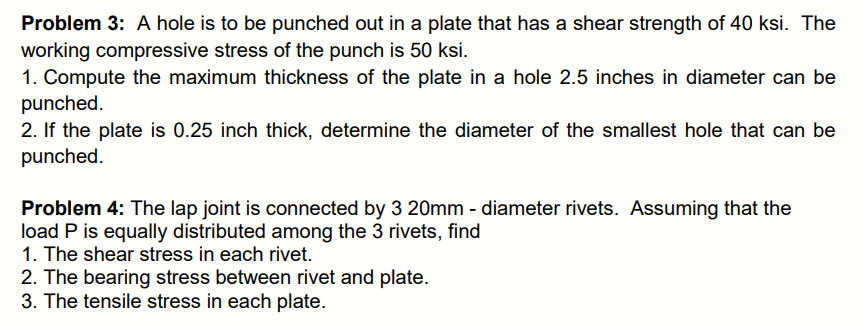

Problem 3 A Hole Is To Be Punched Out In A Plate That Has A Shear Strength Of 40 Ksi The Working Compressive Stress Of 1
Problem 3 A Hole Is To Be Punched Out In A Plate That Has A Shear Strength Of 40 Ksi The Working Compressive Stress Of 1 (71.54 KiB) Viewed 40 times
Problem 3: A hole is to be punched out in a plate that has a shear strength of 40 ksi. The working compressive stress of the punch is 50 ksi. 1. Compute the maximum thickness of the plate in a hole 2.5 inches in diameter can be punched. 2. If the plate is 0.25 inch thick, determine the diameter of the smallest hole that can be punched. Problem 4: The lap joint is connected by 3 20mm - diameter rivets. Assuming that the load P is equally distributed among the 3 rivets, find 1. The shear stress in each rivet. 2. The bearing stress between rivet and plate. 3. The tensile stress in each plate.
