Problem 2: A rigid bar AB as shown in Figure SM – 011 is supported by two vertical rods. The bar AB is 6 m long and is h

[answerhappygod]

Problem 2 A Rigid Bar Ab As Shown In Figure Sm 011 Is Supported By Two Vertical Rods The Bar Ab Is 6 M Long And Is H 1 (61.78 KiB) Viewed 35 times

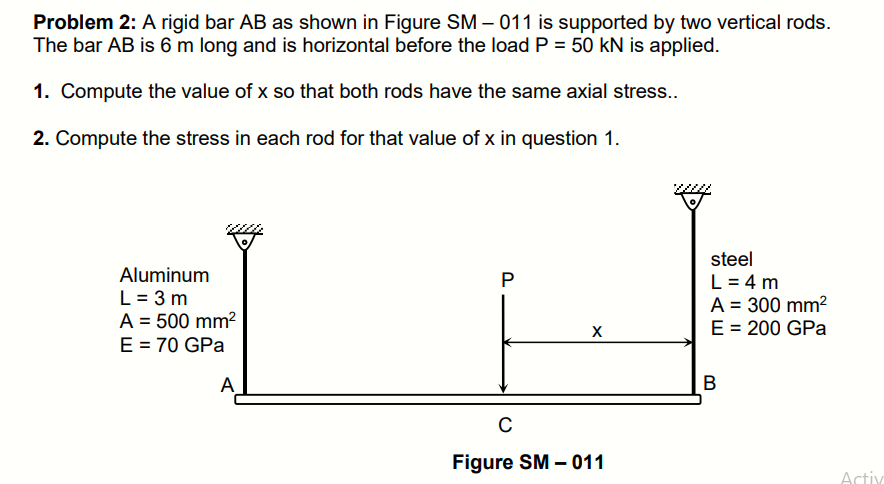

Problem 2: A rigid bar AB as shown in Figure SM – 011 is supported by two vertical rods. The bar AB is 6 m long and is horizontal before the load P = 50 kN is applied. 1. Compute the value of x so that both rods have the same axial stress.. 2. Compute the stress in each rod for that value of x in question 1. P Aluminum L = 3 m A = 500 mm E = 70 GPa steel L = 4 m A = 300 mm E = 200 GPa X A B с Figure SM-011 Activ
