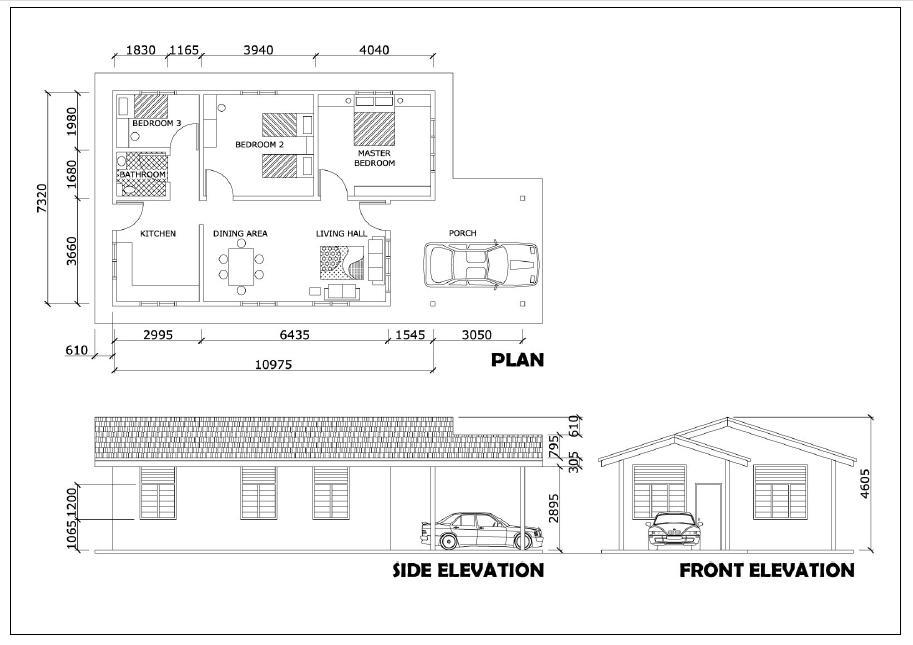

1830 11654 3940 4040 T o 1980 BEDROOM 3 BEDROOM 2 MASTER BEDROOM 1680 SBATHROOM 7320 ロ KITCHEN DINING AREA LIVING HALL PORCH 3660 2995 + 6435 1545) 3050 610 10975 PLAN 795, 305 619 4605 1065,1200, 2895 SIDE ELEVATION FRONT ELEVATION
1. You are given a set of architectural drawings consists of a Plan, Front Elevation and Side Elevation of a storey house as shown in Figure 1. 2. Using the AutoCad software, you are required to: a) Draw the plan, front elevation and side elevation shown in Figure 1 according to the dimension given. b) Set appropriate drawing limits as to fit in the whole set of drawing. Make sure the drawing limit is bigger than the three objects. c) You are inquired to use different layers of the object as being taught in previous lectures. Use different colours to indicate different objects such as red for wall, blue for door, orange for furniture and etc. d) You may change the hatch pattern by choosing your preference pattern that is SUITABLE with its function on an appropriate scale.
