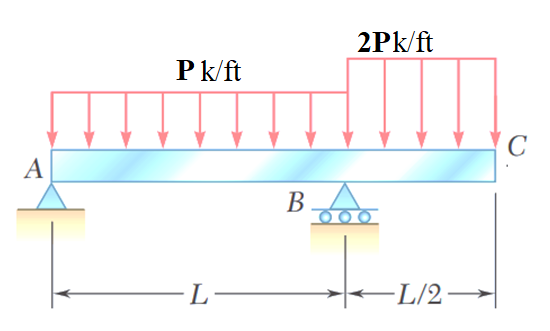

From the given beam loaded as shown, Let P = 12 kips, L = 6 ft,
a = 3 ft. E = 29 x 10^6 psi, I = 722 in^4.
Use double integration method
From The Given Beam Loaded As Shown Let P 12 Kips L 6 Ft A 3 Ft E 29 X 10 6 Psi I 722 In 4 Use Double In 1 (28.43 KiB) Viewed 32 times
a. Equation of the slope
b. Equation of the deflection curve
c. The deflection at the midpoint.
d. The slope at point B.
2Pk/ft Pk/ft С A ВА 000 L- -L/26
