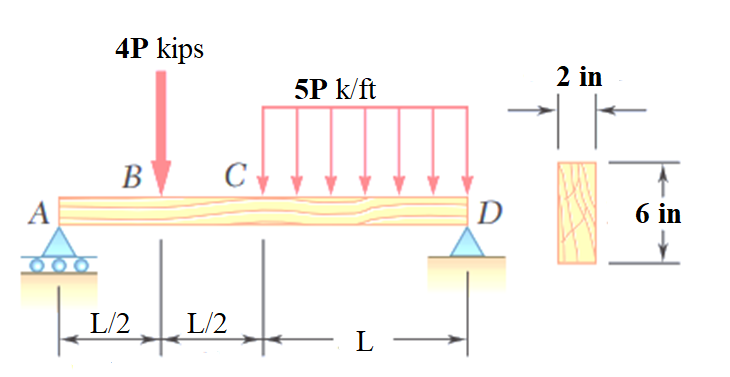

From the given beam loaded as shown, Let P = 12 kips, L = 6 ft,
a = 3 ft. E = 29 x 10^6 psi, I = 722 in^4.
Determine the following: Use Bracket
Method
Use the dimension of the beam below to determine the I-moment of
inertia ( disregard the I-moment of inertia given above)
From The Given Beam Loaded As Shown Let P 12 Kips L 6 Ft A 3 Ft E 29 X 10 6 Psi I 722 In 4 Determine The 1 (49.28 KiB) Viewed 37 times
a. Equation of the slope
b. Equation of the deflection curve
c. The deflection at the midpoint.
d. The slope at point B.
4P kips 5P k/ft 2 in TI B. C A D 6 in L/2 L/2 L =
