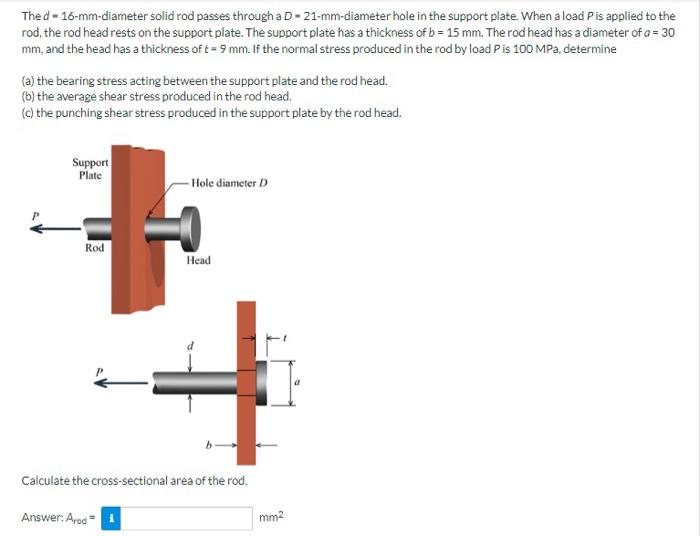

Thed - 16-mm-diameter solid rod passes through a D-21-mm-diameter hole in the support plate. When a load Pis applied to the rod, the rod head rests on the support plate. The support plate has a thickness of b = 15 mm. The rod head has a diameter of a = 30 mm, and the head has a thickness of t= 9 mm. If the normal stress produced in the rod by load Pis 100 MPa, determine (a) the bearing stress acting between the support plate and the rod head. (b) the average shear stress produced in the rod head. (c) the punching shear stress produced in the support plate by the rod head. Support Plate -Hole diameter D Rod Head Calculate the cross-sectional area of the rod. Answer: Arod mma
Part 5 Calculate the area subjected to shear stress in the rod head. Answer: Av-red head mm2
Part 6 Calculate the average shear stress in the rod head. Answer:T= MP3
Part 7 Calculate the area subjected to punching shear stress produced in the support plate by the rod head. Answer: Ayplate mm2
Part 8 Calculate the average punching shear stress in the support plate. Answer: MPa
