I Want The Sizes For Each Line Please 1 (62.79 KiB) Viewed 37 times
I Want The Sizes For Each Line Please 2 (68.96 KiB) Viewed 37 times
I Want The Sizes For Each Line Please 3 (72.13 KiB) Viewed 37 times

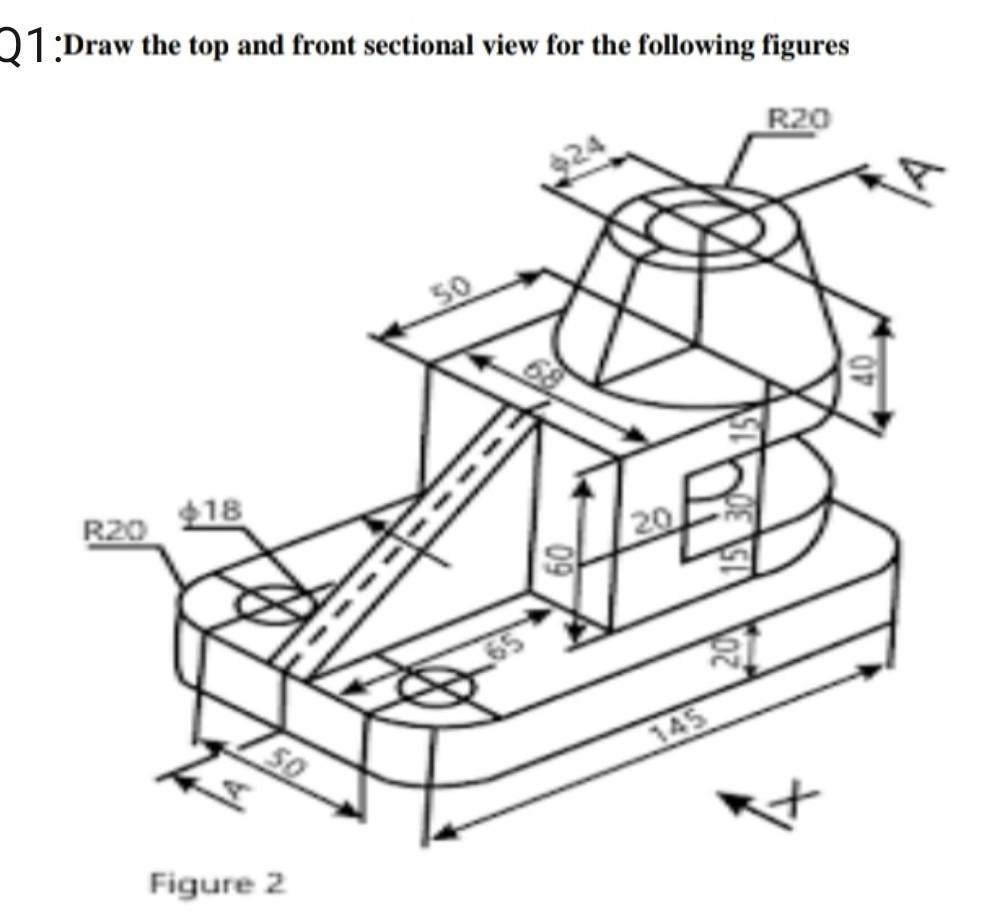

21:Draw the top and front sectional view for the following figures R20 30 40 R20 18 20 50 TAS Figure 2

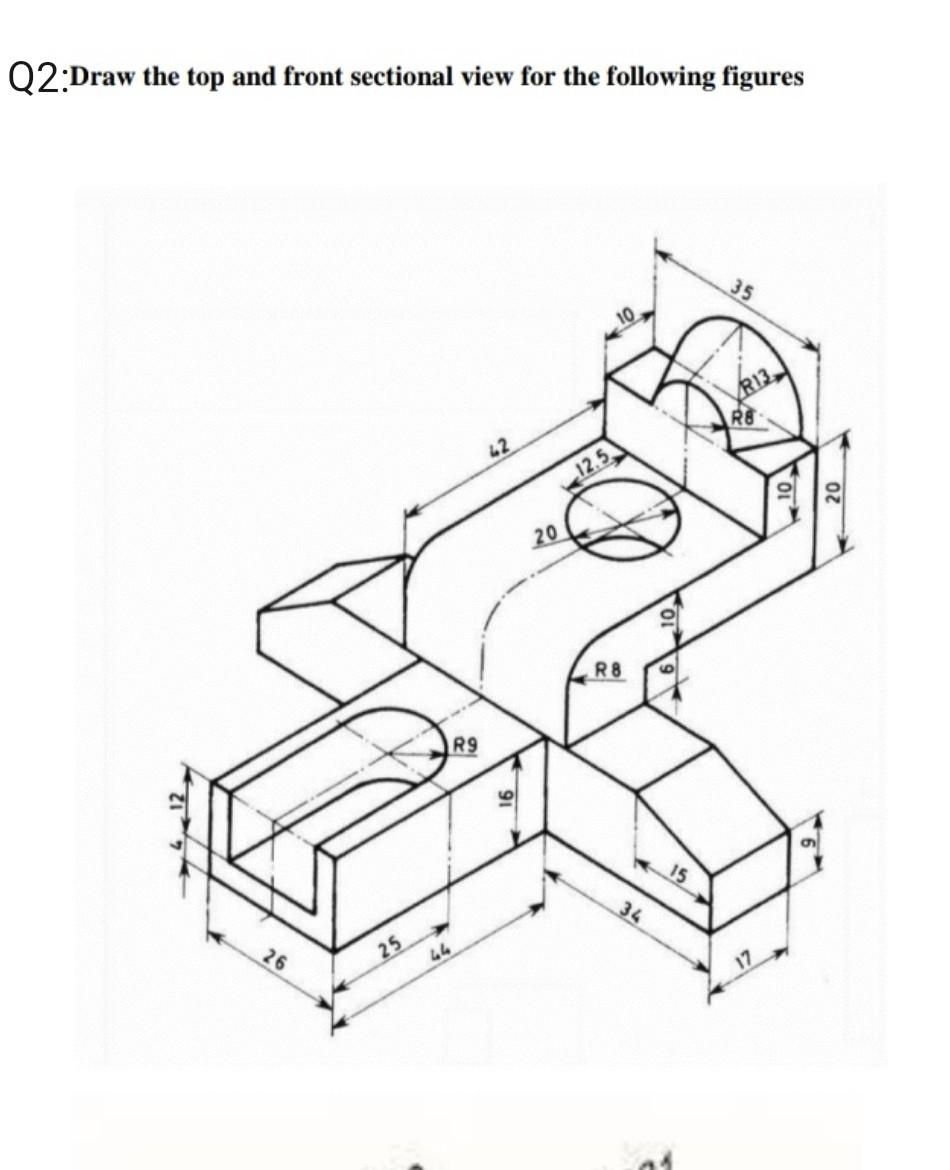

Q2:Draw the top and front sectional view for the following figures 35 R8 42 12.5 10 20 R8 R9 15 34 26 25 44

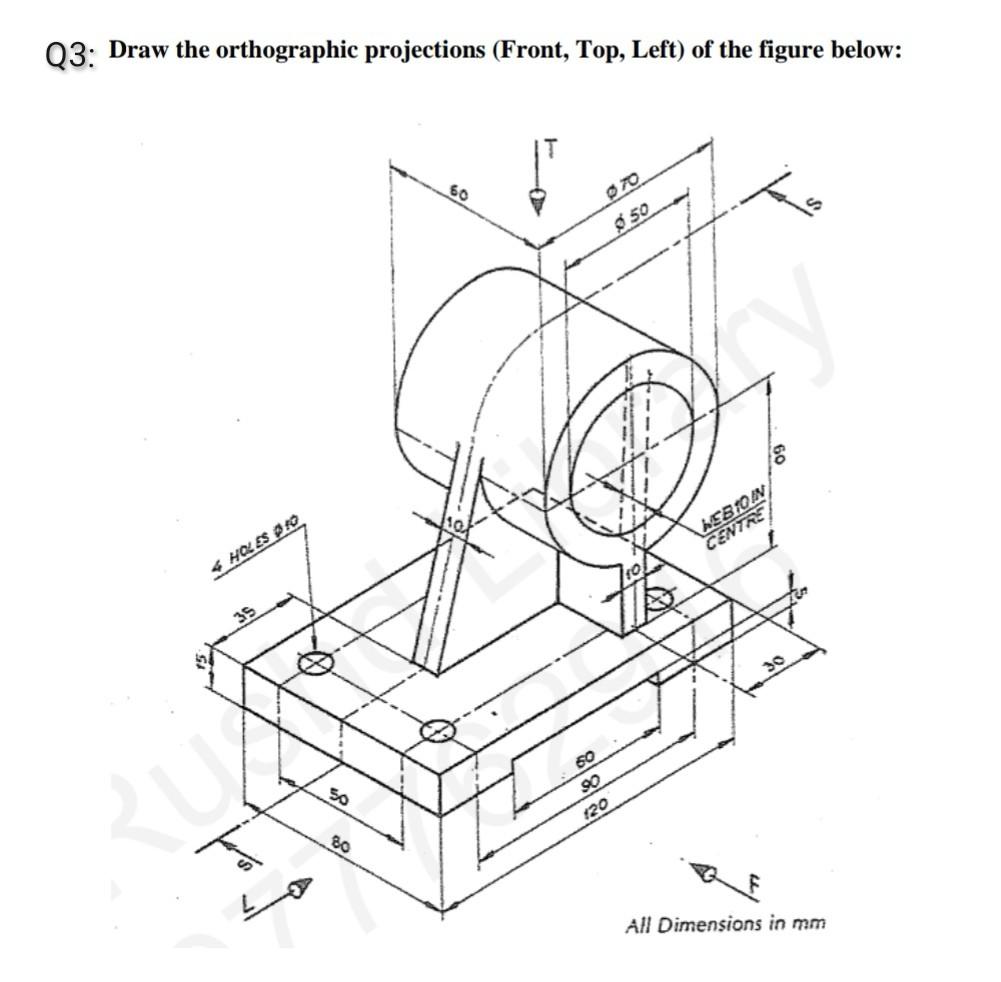

Q3: Draw the orthographic projections (Front, Top, Left) of the figure below: d 60 70 50 AEBIOIN CENTRE 4 HOLES PRO 35 - U 50 60 90 120 80 to All Dimensions in mm
