The cantilever beam is subjected to a concentrated load of P = 41 kips. The cross sectional dimensions of the wide-tange

Post by answerhappygod »

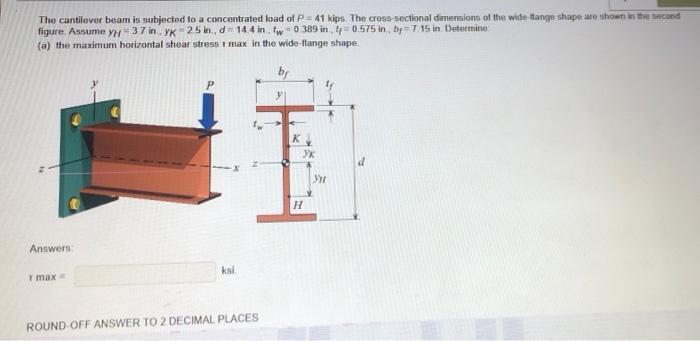

The Cantilever Beam Is Subjected To A Concentrated Load Of P 41 Kips The Cross Sectional Dimensions Of The Wide Tange 1
The Cantilever Beam Is Subjected To A Concentrated Load Of P 41 Kips The Cross Sectional Dimensions Of The Wide Tange 1 (24.81 KiB) Viewed 22 times
The cantilever beam is subjected to a concentrated load of P = 41 kips. The cross sectional dimensions of the wide-tange shape are shown in the second figure. Assume YH-37 in YK - 25 ind14.4 in tw = 0.389 in p=0.575 in, by=715 in Determine (a) the maximum horizontal shear stress max in the wide fange shape Yx WW H Answers ksi max ROUND OFF ANSWER TO 2 DECIMAL PLACES
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
