Question 4: (3 points, Challenge) For the beam find the optimal placement of supports that minimises the maximum magnitu

Post by answerhappygod »

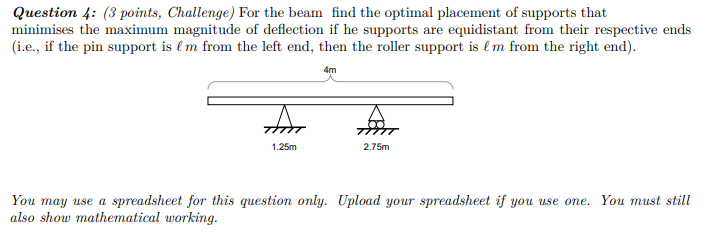

Question 4 3 Points Challenge For The Beam Find The Optimal Placement Of Supports That Minimises The Maximum Magnitu 1
Question 4 3 Points Challenge For The Beam Find The Optimal Placement Of Supports That Minimises The Maximum Magnitu 1 (37.35 KiB) Viewed 19 times
Question 4: (3 points, Challenge) For the beam find the optimal placement of supports that minimises the maximum magnitude of deflection if he supports are equidistant from their respective ends (i.e., if the pin support is em from the left end, then the roller support is em from the right end). 4m Ar 1.25m 2.75m You may use a spreadsheet for this question only. Upload your spreadsheet if you use one. You must still also show mathematical working.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
