The pressure tank shown is fabricated from spirally-wrapped metal plates that are welded at the seams in the orientation

Post by answerhappygod »

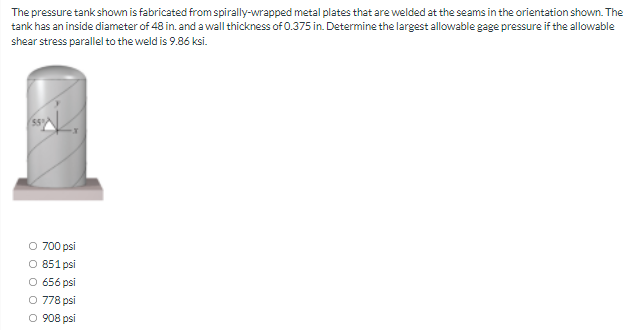

The Pressure Tank Shown Is Fabricated From Spirally Wrapped Metal Plates That Are Welded At The Seams In The Orientation 1
The Pressure Tank Shown Is Fabricated From Spirally Wrapped Metal Plates That Are Welded At The Seams In The Orientation 1 (23.85 KiB) Viewed 27 times
The pressure tank shown is fabricated from spirally-wrapped metal plates that are welded at the seams in the orientation shown. The tank has an inside diameter of 48 in. and a wall thickness of 0.375 in. Determine the largest allowable gage pressure if the allowable shear stress parallel to the weld is 9.86 ksi. O 700 psi O 851 psi O 656 psi 0 778 psi O 908 psi
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
