A 1.90-in-diameter solid shaft is subjected to an axial force of P = 2500 lb, a horizontal shear force of V = 330 lb, an
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A 1.90-in-diameter solid shaft is subjected to an axial force of P = 2500 lb, a horizontal shear force of V = 330 lb, an

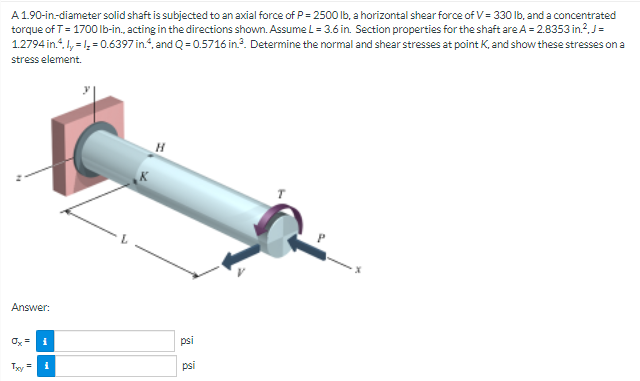

A 1.90-in-diameter solid shaft is subjected to an axial force of P = 2500 lb, a horizontal shear force of V = 330 lb, and a concentrated torque of T = 1700 lb-in, acting in the directions shown. Assume L = 3.6 in Section properties for the shaft are A = 2.8353 in.) = 1.2794 in.". = , = 0.6397 in.and Q = 0.5716 in? Determine the normal and shear stresses at point K, and show these stresses on a stress element. H Answer: Ox= psi Txy 1 psi
