A 1.625-in-diameter solid shaft is subjected to an axial force of P = 640 lb, a horizontal shear force of V = 285 lb, an

Post by answerhappygod »

A 1 625 In Diameter Solid Shaft Is Subjected To An Axial Force Of P 640 Lb A Horizontal Shear Force Of V 285 Lb An 1
A 1 625 In Diameter Solid Shaft Is Subjected To An Axial Force Of P 640 Lb A Horizontal Shear Force Of V 285 Lb An 1 (45.87 KiB) Viewed 22 times

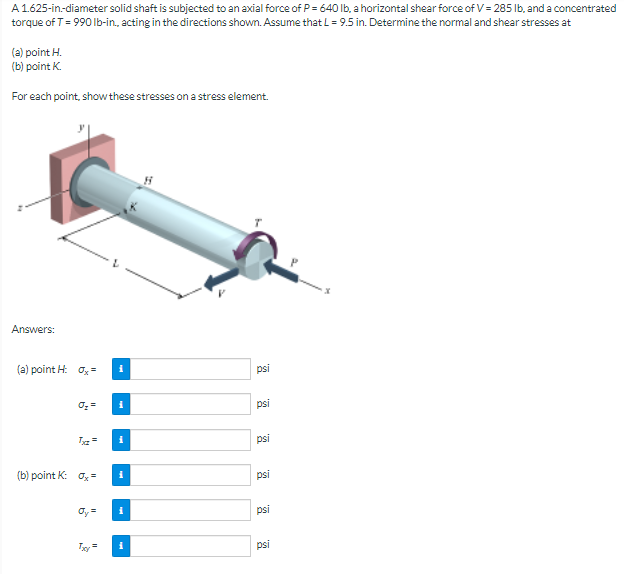

A 1.625-in-diameter solid shaft is subjected to an axial force of P = 640 lb, a horizontal shear force of V = 285 lb, and a concentrated torque of T = 990 lb-in, acting in the directions shown. Assume that L = 9.5 in. Determine the normal and shear stresses at (a) point H. (b) point For each point show these stresses on a stress element. Answers: (a) point H. ox- i psi psi psi (b) point k: 0x = psi oy i psi psi
