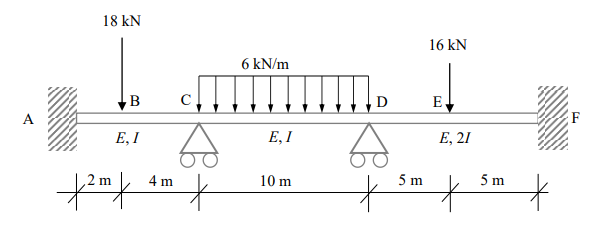

Using the moment distribution method, determine the internal
moments at each beam's support shown in Figure 6. Table your
solutions. Indicate the maximum bending moment of the beam and then
sketch the beams' shear force and bending moments separately.
Using The Moment Distribution Method Determine The Internal Moments At Each Beam S Support Shown In Figure 6 Table You 1 (18.28 KiB) Viewed 30 times
(Figure 6)
Please answer with complete & accurate steps!!!
18 kN 16 kN 6 kN/m lo B c D E A F E, 1 E,1 E, 21 4 m 10 m 5 m 5 m +²mf t t 十 t
