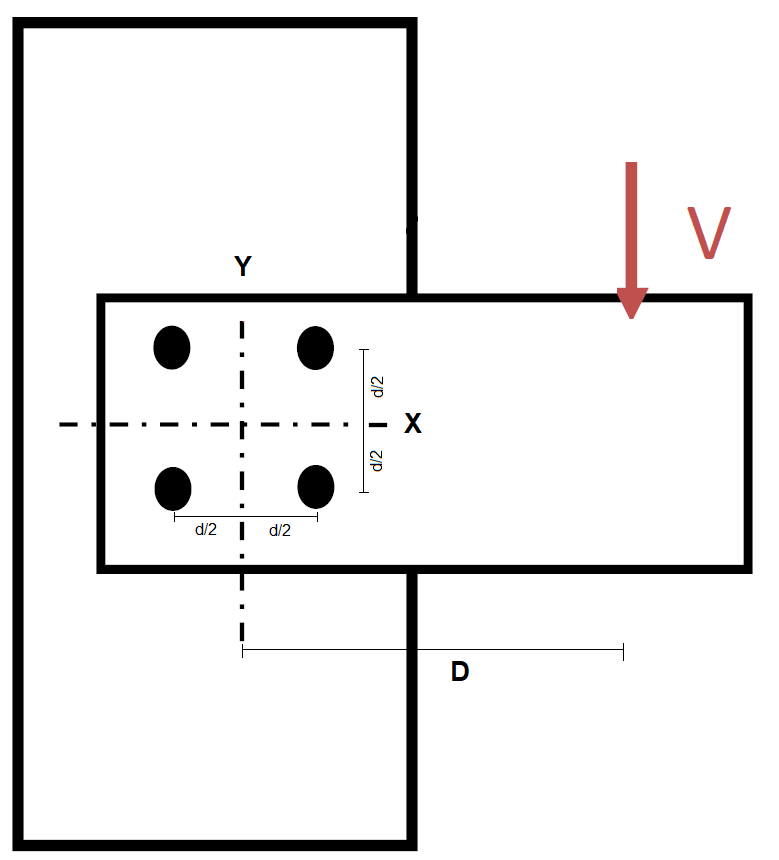

If the force acting on bolts are proportional to the distance
from the centre of rotation, what is the shear force acting in each
bolt for the connection given in the figure below:
If The Force Acting On Bolts Are Proportional To The Distance From The Centre Of Rotation What Is The Shear Force Actin 1 (13.29 KiB) Viewed 35 times
A. 4V
B. V
C. V/2
D. V/4
v d/2 | d2 X d/2 d/2 D
