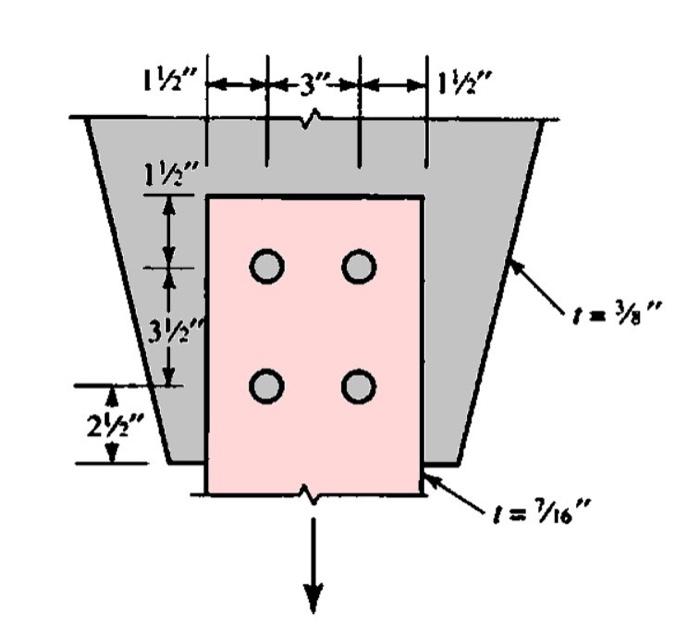

In the connection shown in the figure, the bolts are 3/4 inch in diameter, and A50 steel is used for all components.
Compute for the nominal block shear strength (kips) of the entire steel plate assembly. Review the figure and analyze the problem carefully prior to answering.
In The Connection Shown In The Figure The Bolts Are 3 4 Inch In Diameter And A50 Steel Is Used For All Components Com 1 (29.98 KiB) Viewed 43 times
13 Wire ལན་ དུག ། 11日 O O " 321 O O 212" =710"
