analyze as continuous beam ELEVATION L L1 L L1 Span Span 2 Span 3 Span 4 H W abutment pier w = 4kN/m L = 8meters L1 = 3

Post by answerhappygod »

Analyze As Continuous Beam Elevation L L1 L L1 Span Span 2 Span 3 Span 4 H W Abutment Pier W 4kn M L 8meters L1 3 1
Analyze As Continuous Beam Elevation L L1 L L1 Span Span 2 Span 3 Span 4 H W Abutment Pier W 4kn M L 8meters L1 3 1 (59.79 KiB) Viewed 49 times

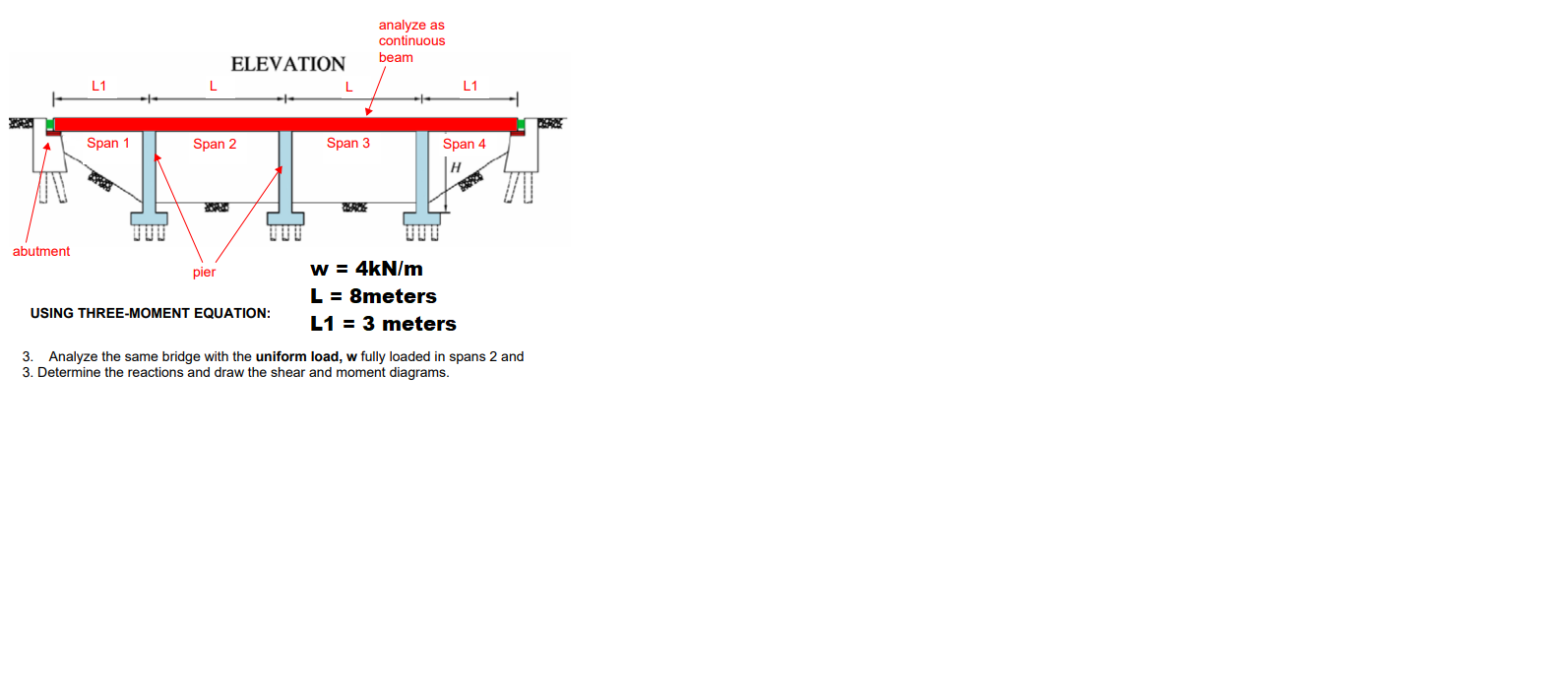

analyze as continuous beam ELEVATION L L1 L L1 Span Span 2 Span 3 Span 4 H W abutment pier w = 4kN/m L = 8meters L1 = 3 meters USING THREE-MOMENT EQUATION: 3. Analyze the same bridge with the uniform load, w fully loaded in spans 2 and 3. Determine the reactions and draw the shear and moment diagrams.
