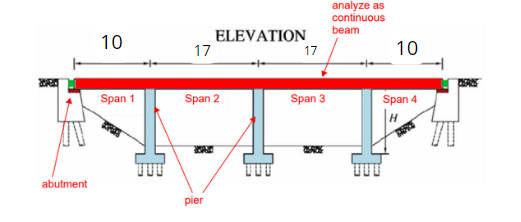

1) USING THREE-MOMENT EQUATION: Analyze the bridge shown in the
figure above. Using influence diagrams, it has been determined that
in order to produce the maximum positive moment in Span 2, a
uniform load, 9 kN/m must be loaded fully in Spans 2 and 4.
Determine the reactions at the pier supports and draw the shear and
moment diagrams. Analyze the same bridge with the uniform load,
9kN/m fully loaded in spans 2 and 3. Determine the reactions and
draw the shear and moment diagrams.
