Using the Influence Lines: A.) Compute the maximum ordinate of the influence line to obtain max positive moment at point

[answerhappygod]

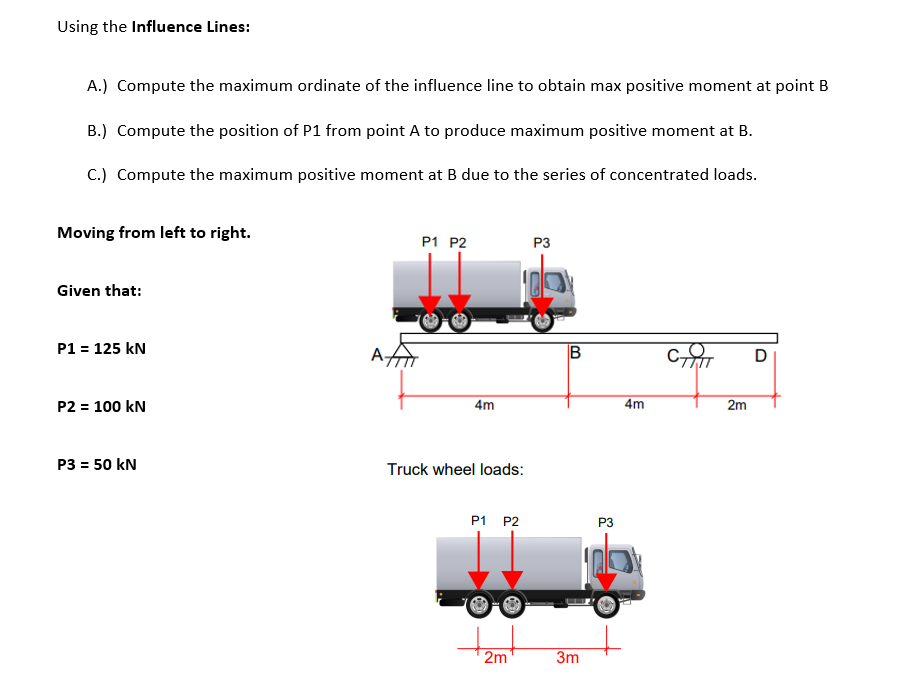

Using The Influence Lines A Compute The Maximum Ordinate Of The Influence Line To Obtain Max Positive Moment At Point 1 (62.69 KiB) Viewed 92 times

Using the Influence Lines: A.) Compute the maximum ordinate of the influence line to obtain max positive moment at point B B.) Compute the position of P1 from point A to produce maximum positive moment at B. C.) Compute the maximum positive moment at B due to the series of concentrated loads. Moving from left to right. P1 P2 P3 Given that: P1 = 125 kN AM B cu D D P2 = 100 kN 4m 4m 2m P3 = 50 kN Truck wheel loads: P1 P2 P3 2m 3m
