9m analyze as continuous ELEVATION beam 14m T4m 9m Span 1 Span 2 Span 3 Span 4 abutment pier USING THREE-MOMENT EQUATION

Post by answerhappygod »

9m Analyze As Continuous Elevation Beam 14m T4m 9m Span 1 Span 2 Span 3 Span 4 Abutment Pier Using Three Moment Equation 1
9m Analyze As Continuous Elevation Beam 14m T4m 9m Span 1 Span 2 Span 3 Span 4 Abutment Pier Using Three Moment Equation 1 (67.19 KiB) Viewed 35 times
uniform load w=10

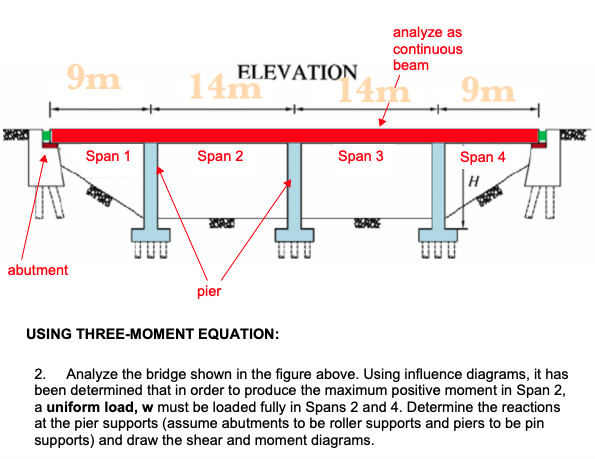

9m analyze as continuous ELEVATION beam 14m T4m 9m Span 1 Span 2 Span 3 Span 4 abutment pier USING THREE-MOMENT EQUATION: 2. Analyze the bridge shown in the figure above. Using influence diagrams, it has been determined that in order to produce the maximum positive moment in Span 2, a uniform load, w must be loaded fully in Spans 2 and 4. Determine the reactions at the pier supports (assume abutments to be roller supports and piers to be pin supports) and draw the shear and moment diagrams.
