(b) Given coefficient of permeability = 0.0002 cm/s, unit weight of water = 9.81 kN/m? and completed flow net as shown i

Post by answerhappygod »

B Given Coefficient Of Permeability 0 0002 Cm S Unit Weight Of Water 9 81 Kn M And Completed Flow Net As Shown I 1
B Given Coefficient Of Permeability 0 0002 Cm S Unit Weight Of Water 9 81 Kn M And Completed Flow Net As Shown I 1 (65.68 KiB) Viewed 39 times

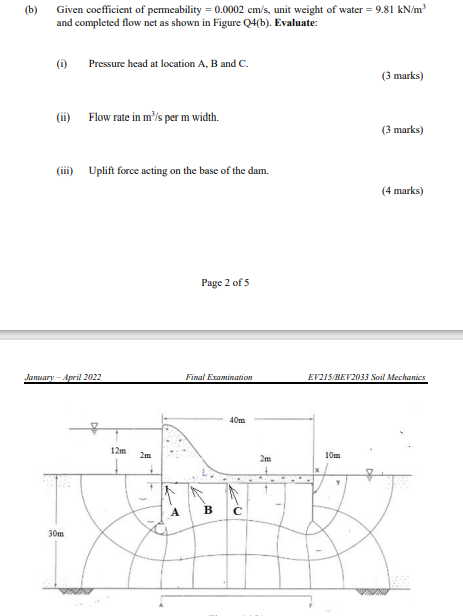

(b) Given coefficient of permeability = 0.0002 cm/s, unit weight of water = 9.81 kN/m? and completed flow net as shown in Figure Q4(b). Evaluate: (0) Pressure head at location A, B and C. (3 marks) (i) Flow rate in m?s per m width. (3 marks) (i) Uplift force acting on the base of the dam. (4 marks) Page 2 of 5 January - April 2022 Final Examination EV215/BEV2033 Soil Mechanics 40m 12m 10m 2m Y А B с 30m
