analyze as continuous beam ELEVATION L L1 L L1 Span 1 Span 2 Span 3 Span 4 H abutment w=5kN/m L=9meters L1=4meters pier

Post by answerhappygod »

Analyze As Continuous Beam Elevation L L1 L L1 Span 1 Span 2 Span 3 Span 4 H Abutment W 5kn M L 9meters L1 4meters Pier 1
Analyze As Continuous Beam Elevation L L1 L L1 Span 1 Span 2 Span 3 Span 4 H Abutment W 5kn M L 9meters L1 4meters Pier 1 (75.12 KiB) Viewed 40 times

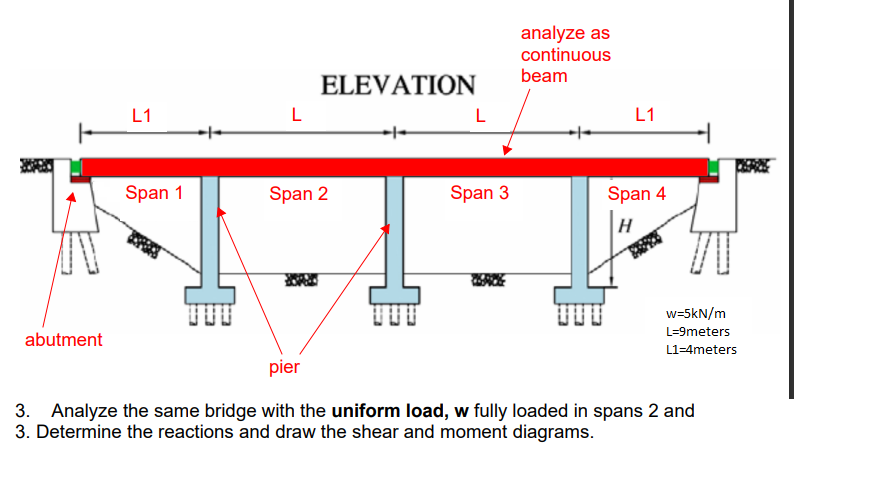

analyze as continuous beam ELEVATION L L1 L L1 Span 1 Span 2 Span 3 Span 4 H abutment w=5kN/m L=9meters L1=4meters pier 3. Analyze the same bridge with the uniform load, w fully loaded in spans 2 and 3. Determine the reactions and draw the shear and moment diagrams.
