4. Solve for the support reactions of the beam shown below using SDM. Assume beam is prismatic and homogeneous. Draw the

Post by answerhappygod »

4. Solve for the support reactions of the beam shown below using
SDM. Assume beam is prismatic and homogeneous. Draw the shear
and moment diagram
w = 7 + 4 in kN/m = 12kN/m
P = 47 + 10 in kN = 57kN/m
4 Solve For The Support Reactions Of The Beam Shown Below Using Sdm Assume Beam Is Prismatic And Homogeneous Draw The 1
4 Solve For The Support Reactions Of The Beam Shown Below Using Sdm Assume Beam Is Prismatic And Homogeneous Draw The 1 (17.96 KiB) Viewed 53 times

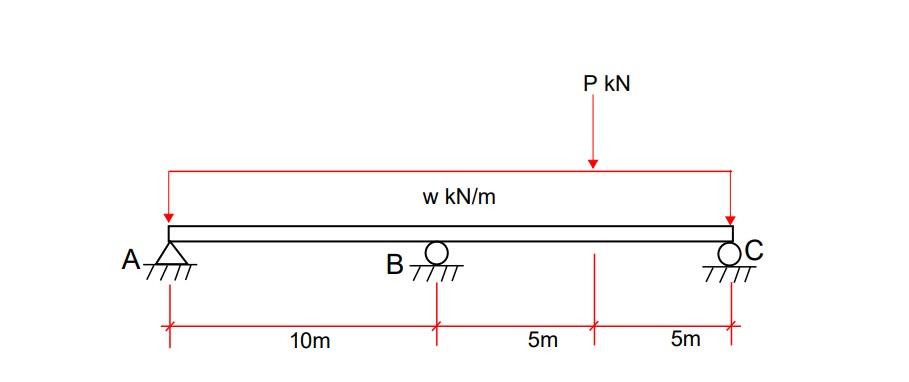

PKN w kN/m BONT TTTT 10m 5m 5m
