Analyze the Bridge with the uniform load, w fully loaded in
spans 2 and 3. Determine the reactions and draw the shear and
moment diagrams.
Assume:
w = 11kN/m
L = 15m
L1 = 10m
Analyze The Bridge With The Uniform Load W Fully Loaded In Spans 2 And 3 Determine The Reactions And Draw The Shear An 1 (61.04 KiB) Viewed 34 times
Need Answer ASAP

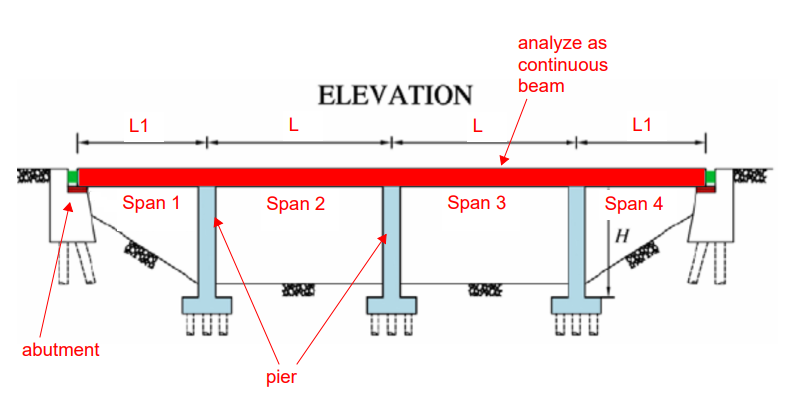

analyze as continuous beam ELEVATION L L1 L L1 Span 1 Span 2 Span 3 Span 4 H abutment pier
